Advertising Flexible LED Panel Screen Display 2mm Pixel Pitch 240×120mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2 flexible LED advertising display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2 Flexible LED Advertising Display | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 2.0mm | Resolution: | 120×60 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥750cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.205±0.05 |
| High Light: | Flexible LED Panel Screen Display 2mm,120mm Flexible LED Panel Screen Display,Advertising flexible led screen panel |
||
Product Description

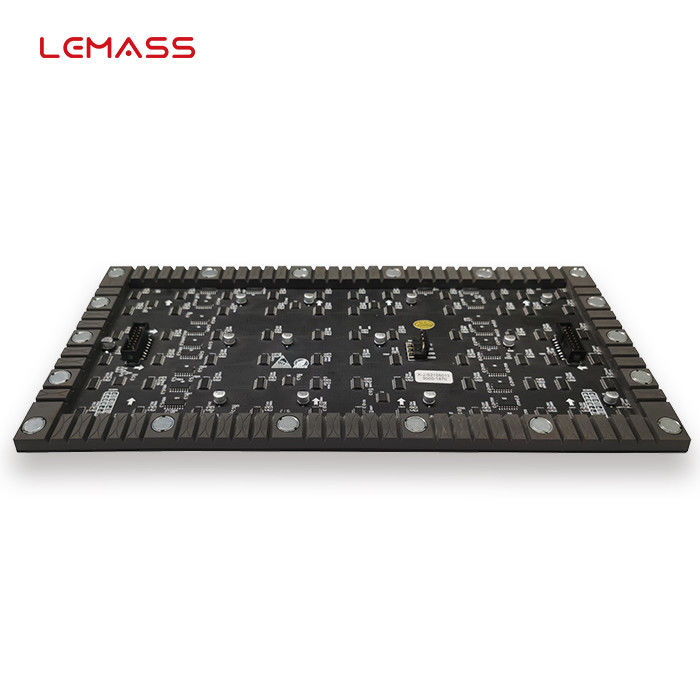

P2 flexible LED advertising display 240*120mm LMS-Soft 14bit ultra-high grayscale
Description:
With high quality, it can achieve single-point maintenance, the cost of which is lower ; high brightness and low dead light rate render energy saving; seamless splicing and ability to control the splicing error between modules within plus or minus 0.1mm empower customers to personalize the shape of screens; good flatness and the use of silicone achieve a soft touch without protruding fingers; real-time broadcast with DVI, HDMI, 3G / HD / SD three-speed SDI high-definition display mode makes it suitable for indoor sites like TV video programs, VCD or DVD and live site; the circuit board is stable since it is made through wave soldering process and has a green oil oxygen barrier layer, which prevents the circuit from moisture and oxidation and improves its service life.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft2.0B-X |
| Pixel Pitch (mm) | 2.0 |
| Pixel Density (pixels/sqm) | 250,000 |
| Module Resolution | 120×60 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 240×120×8.6 |
| Module Weight (kg) | 0.205±0.05 |
| Brightness (cd/sqm) | ≥750 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥2880 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤630,Ave:≤210 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

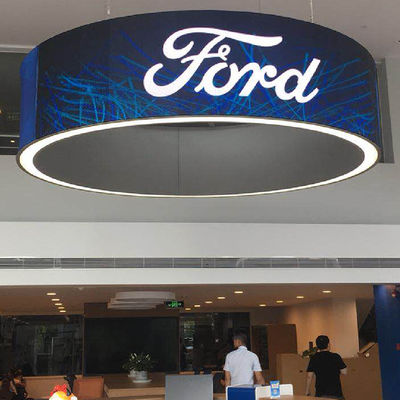

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
