P1.8 Arc Shaped Curved LED Display , Flexible LED Module For Indoor
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.8 flexible LED module 200*150mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.8 Flexible LED Module 200*150mm | Size: | 200×150mm |
|---|---|---|---|
| Pixel Pitch: | 1.875mm | Resolution: | 128×64 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥900cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.19±0.05 |
| High Light: | Arc Shaped Curved LED Display,P1.8 Curved LED Display,Curved Flexible LED Module |
||
Product Description

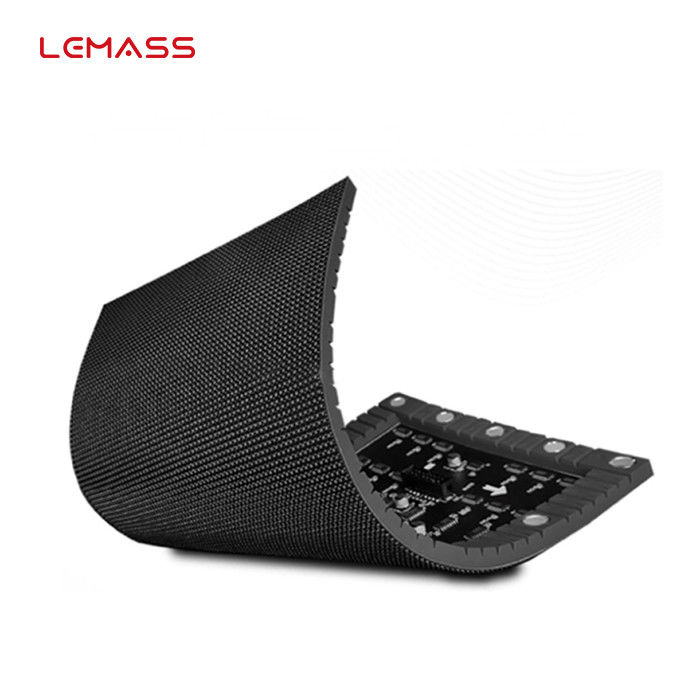

P1.8 flexible LED module 200*150mm indoor arc-shaped screen LMS-Soft lightweight
Description:
Nowadays, LED display users need not only common LED displays which can do advertising, but also need the LED displays to be decoractive and attractive. Hence, it comes the creative LED displays. To make some inner arc LED screen, outer arc LED panel, wave LED panel and cylinder LED display, we develop this kind of indoor soft flexible LED display module. We have three series, 240x120mm flexible LED module series, 320x160mm flexible LED module series and 256x128mm flexible LED module series.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft1.8B-Y |
| Pixel Pitch (mm) | 1.875 |
| Pixel Density (pixels/sqm) | 284,444 |
| Module Resolution | 128×64 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 200×150×9.5 |
| Module Weight (kg) | 0.19±0.05 |
| Brightness (cd/sqm) | ≥900 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥2880 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤794,Ave:≤265 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

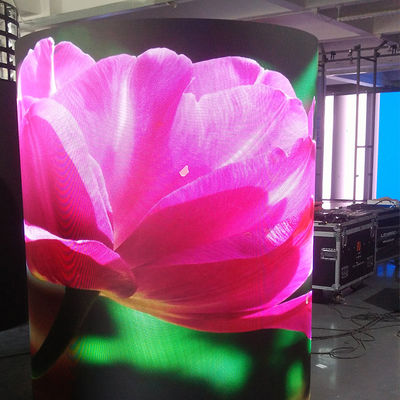

Applications:
Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
