Creative Flexible Curved Video Wall Displays , P1.5 LED Display SMD 1010
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 flexible LED module 200*150mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Flexible LED Module 200*150mm | Size: | 200×150mm |
|---|---|---|---|
| Pixel Pitch: | 1.5625mm | Resolution: | 128×96 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 0.125±0.05 |
| High Light: | Flexible Curved Video Wall Displays,1010 Curved Video Wall Displays,Creative P1.5 LED Display |
||
Product Description

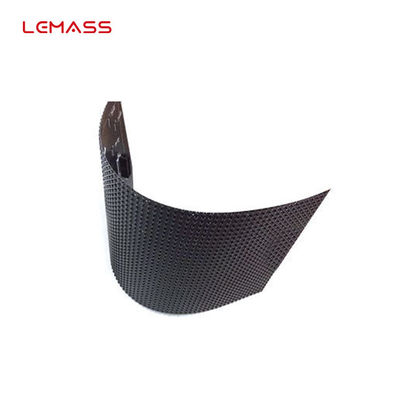

P1.5 flexible LED module 200*150mm indoor creative screen LMS-Soft higher brightness
Description:
At the very begining, LED screen was used for displaying(advertising, show, etc.) only, with the advancement of technology, the regular LED screen couldn’t satisfy the customers anymore, so the flexible LED screen came into being. And at present, some strange LED screen are widely seen and they are composed of soft LED module. Flexible LED screen, its name says it all. We can bend the LED screen within a certain range(140°) without affecting the visual performance, while regular LED screens are “hard&flat” and cannot be bent.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft1.5A-Y |
| Pixel Pitch (mm) | 1.5625 |
| Pixel Density (pixels/sqm) | 409,600 |
| Module Resolution | 128×96 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 200×150×10 |
| Module Weight (kg) | 0.125±0.05 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤594,Ave:≤198 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

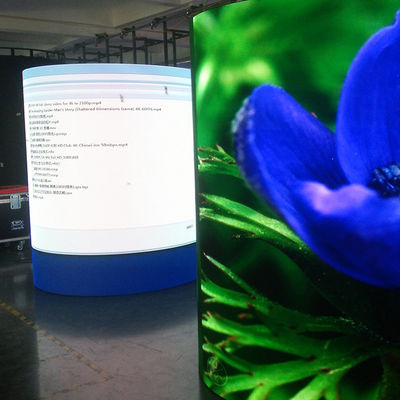

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
