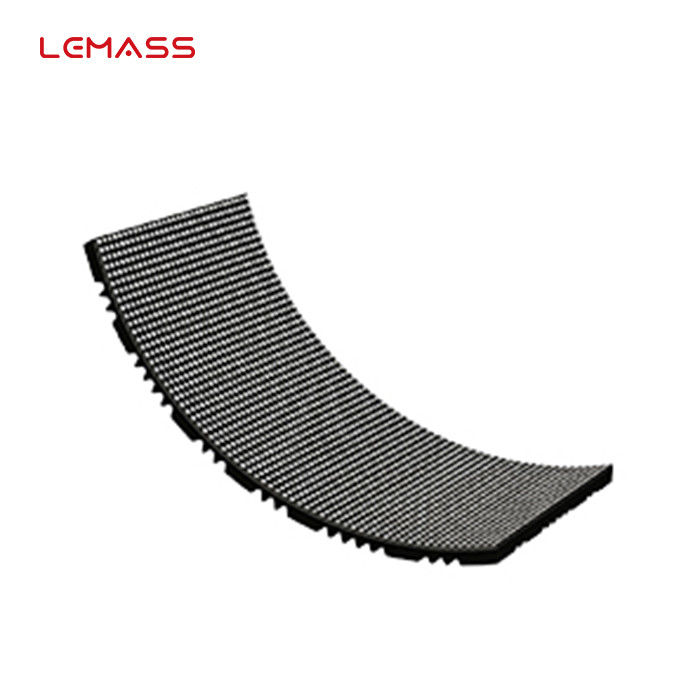

P1.2 Flexible Curved LED Display Screen Module Ultra Thin 200×150mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 flexible LED module 200*150mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Flexible LED Module 200*150mm | Size: | 200×150mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 160×120 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 0.125±0.05 |
| High Light: | Flexible Curved LED Display Screen,P1.2 Curved LED Display Screen,Ultra Thin P1.2 LED Display |
||
Product Description
P1.2 flexible LED module 200*150mm waves display screen LMS-Soft ultra-thin
Description:

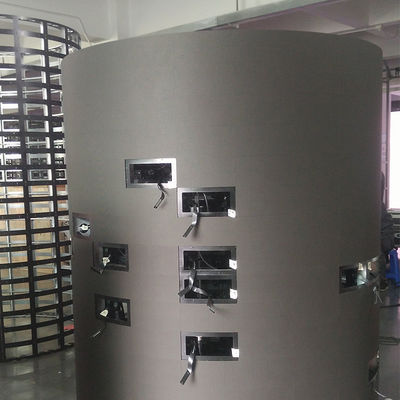

Special shapes such as waves and ribbons: Special shapes like waves and ribbons are also often adopted by designers. But it is still incumbent on manufacturers of LED displays to put into a reality. On their long road of exploration, LED soft molecules emerge as a successful solution.There are many applications for LED soft modules which is mainly based on their soft, foldable and flexible features. As long as your ideas can be achieved with this feature, they can be used. Unilumin will provide you with a comprehensive solution for display systems.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft1.2A-Y |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 160×120 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 200×150×10 |
| Module Weight (kg) | 0.125±0.05 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤594,Ave:≤198 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
