P3 Cylindrical LED Screen , 240×120mm Flexible LED Display Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3 flexible LED cylindrical screen display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3 Flexible LED Cylindrical Screen Display | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 3.0mm | Resolution: | 80×40 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥900cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.175±0.05 |
| High Light: | P3 Cylindrical LED Screen,120mm Cylindrical LED Screen,Cylindrical Flexible LED Display Panels |
||
Product Description

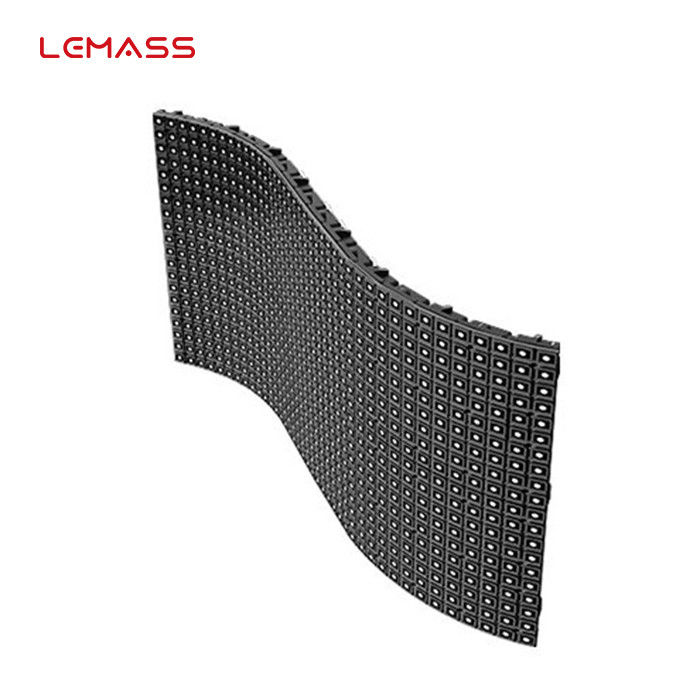

P3 flexible LED cylindrical screen display 240*120mm LMS-Soft high contrast ratio
Description:
Cylindrical screen: In some hotels, conference rooms, bars, etc., many of the pillars are cylindrical. The designer will design these pillars as display screens used to play some special videos to enhance the decoration level or create a special atmosphere. It's hard to achieve that with conventional screens but LED soft modules meet the need perfectly.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft2.5B-X |
| Pixel Pitch (mm) | 3.0 |
| Pixel Density (pixels/sqm) | 111,111 |
| Module Resolution | 80×40 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 240×120×8.6 |
| Module Weight (kg) | 0.175±0.05 |
| Brightness (cd/sqm) | ≥900 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥1920 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤630,Ave:≤210 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

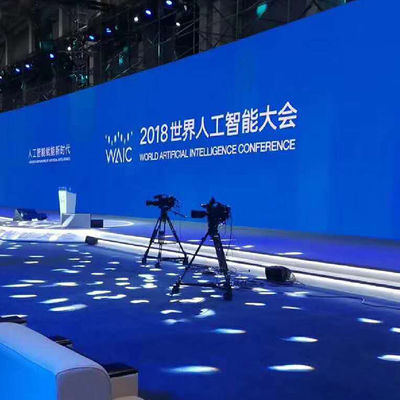

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
