DIY Splicing Rental LED Cabinet , P1.9 LED Display For Multi Scene
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.9 rental LED cabinet DIY splicing |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.9 Rental LED Cabinet DIY Splicing | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 1.95mm | Resolution: | 256x256 |
| Features: | System & PSU Backup | Brightness: | ≥800cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 8±0.05 |
| High Light: | DIY Splicing Rental LED Cabinet,P1.9 Rental LED Cabinet,Multi Scene P1.9 LED Display |
||
Product Description

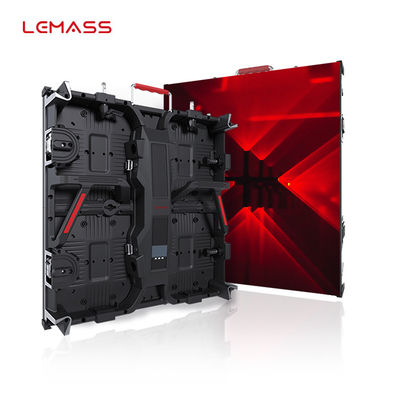

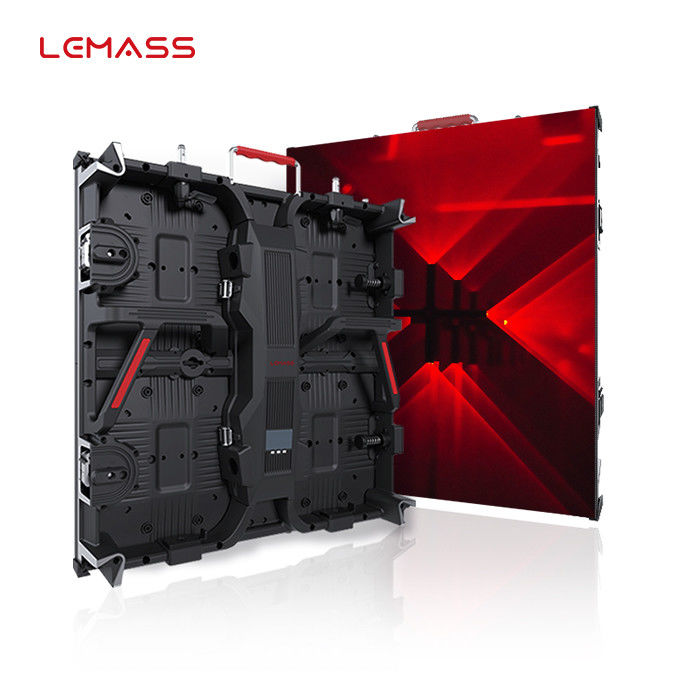

P1.9 rental LED cabinet DIY splicing 500*500mm LMS-CER Series display ratio1:1
Description:

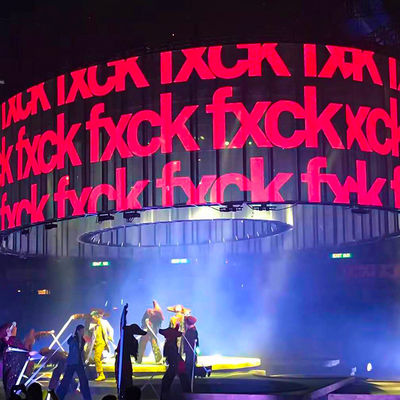

LMS-CER Series indoor&outdoor rental cabinet (display ratio1:1, waterproof IP66) adopts die-casting aluminum structure, can achieve front&rear intelligent installation, realizes curved surface assembly (adjusted from -5° to 5°), and it can work normally in the environment of -20~50℃. Widely used in conferences, shopping malls, concert stage screen, etc.
Quick Detail:
· DIY splicing structure
· Multi-scene application
· LCD Visual monitoring
· Easy to maintain and install
· System & PSU Backup
· Support HDR display
Specifications:
| Parameter Item | LMS-CER1.9 |
| Pixel Pitch (mm) | 1.95 |
| Pixel Density (pixels/sqm) | 262,963 |
| Module Resolution | 128×128 |
| Cabinet Resolution | 256x256 |
| Mask | Optional |
| Lamp Type | SMD1515 |
| Module Size (mm) | 250×250 |
| Module Weight (kg) | 0.62±0.05 |
| Cabinet Size (mm) | 500×500×87 |
| Cabinet Weight (kg) | 8.25±0.05 |
| Brightness (cd/sqm) | ≥800 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP40 |
| Intelligent Storage | Optional |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤650,Ave:≤220 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
