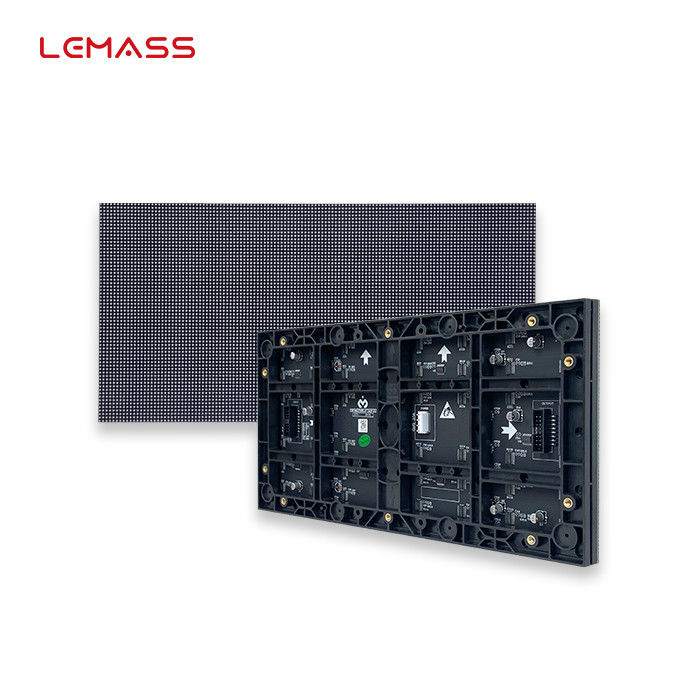

Indoor P4 RGB LED Module , LED Display Screen Panel With 64x32 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P4 indoor RGB led display screen panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P4 Indoor RGB Led Display Screen Panel | Size: | 256×128mm |
|---|---|---|---|
| Pixel Pitch: | 4mm | Resolution: | 64x32 |
| Features: | Pixel By Pixel Correction | Brightness: | 850cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.21±0.05 |
| High Light: | Indoor P4 RGB LED Module,64x32 P4 RGB LED Module,P4 LED Display Screen Panel |
||
Product Description
P4 indoor RGB led display screen panel 256*128mm MSG Series high refresh rate
Description:
CREATE COLORFUL & EFFECTIVE ADVERTISEMENTS: LED Signs are fully programmable with colorful, Hi-Res screens that allow businesses to create brilliant advertising and marketing campaigns with beautiful graphics, animations and even videos. They make it easy to change your messaging and make your advertising efforts more effective.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG4 |
| Pixel Pitch (mm) | 4 |
| Pixel Density (pixels/sqm) | 62,500 |
| Module Resolution | 64x32 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 256×128×14 |
| Module Weight (kg) | 0.21±0.05 |
| Brightness (cd/sqm) | 850 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤360,Ave:≤120 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

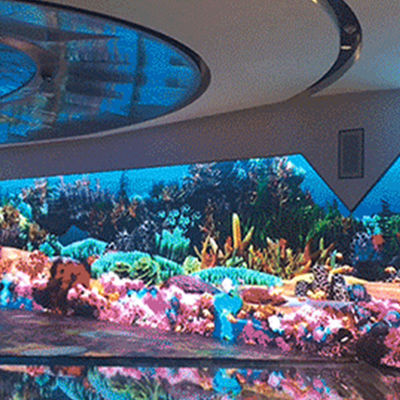

Widely used in shopping malls, exhibition halls, conference centers, etc.
