SMD Full Color Indoor LED Display Module P3 With 192×192mm Size
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3 indoor SMD full color led module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3 Indoor SMD Full Color Led Module | Size: | 192x192mm |
|---|---|---|---|
| Pixel Pitch: | 3mm | Resolution: | 64x64 |
| Features: | Pixel By Pixel Correction | Brightness: | 850cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.29±0.05 |
| High Light: | SMD Indoor LED Display Module,Full Color Indoor LED Display Module,P3 full color led module |
||
Product Description
P3 indoor SMD full color led module 192*192mm MSG Series excellent heat dissipation
Description:
LED VIDEO WALLS & SIGNS MAKE ADVERTISING COME ALIVE: LED Signs offer the ability to create colorful advertisements that are better, brighter and clearer. In addition, they are more eye-catching to grab the attention of your audience. In fact, digital color screens allow businesses to create brilliant advertisements with high-resolution images and animation.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG3 |
| Pixel Pitch (mm) | 3 |
| Pixel Density (pixels/sqm) | 111,111 |
| Module Resolution | 64x64 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 192x192x14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 750 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤390,Ave:≤130 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

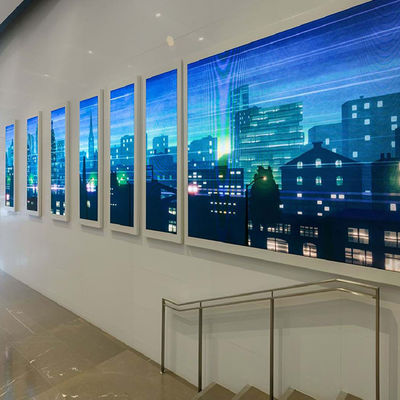

Widely used in shopping malls, exhibition halls, conference centers, etc.
