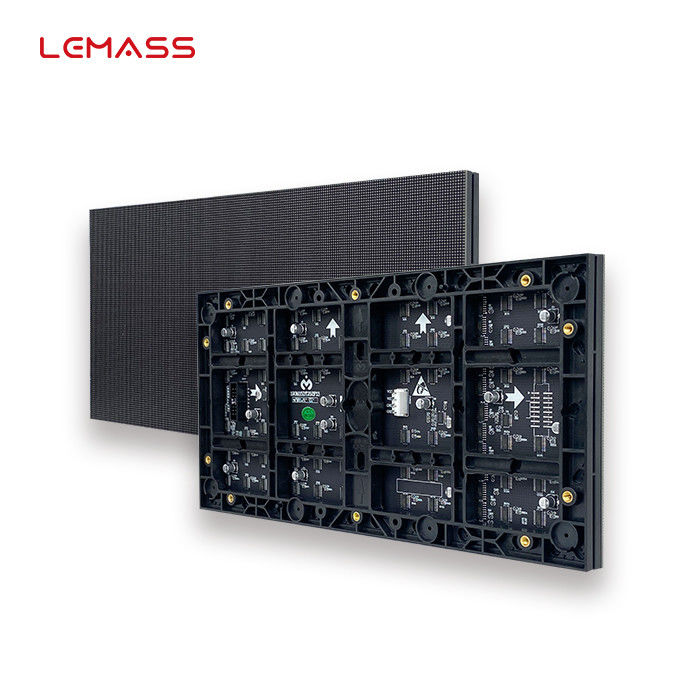

P1.2 Indoor LED Display Module SMD 1010 With 1.25mm Pixel Pitch
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 Indoor LED Display Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Indoor LED Display Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 256×128 |
| Features: | Pixel By Pixel Correction | Brightness: | 750cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 0.47±0.05 |
| High Light: | P1.2 Indoor LED Display Module,1010 Indoor LED Display Module |
||
Product Description
P1.2 Indoor LED Display Module 320*160mm MSG Series Fire Rating UL94V-0
Description:
MSG Indoor Series LED module (display ratio is 2:1) can be used in all mainstream LED screen control systems. Its production process, materials and assembly are carried out in accordance with strict standards. MSG series has the characteristics of flexibility, convenience, easy installation and maintenance, etc. It is widely used in shopping malls, exhibition halls, conference centers, etc.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG1.2 |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256×128 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 750 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤460,Ave:≤160 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

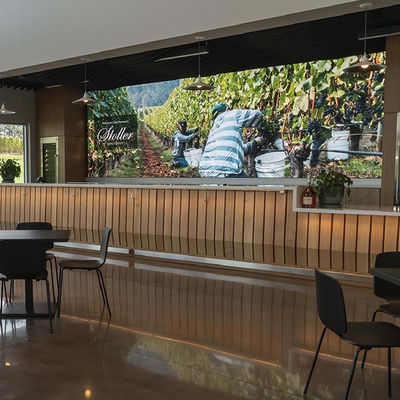

Widely used in shopping malls, exhibition halls, conference centers, etc.
