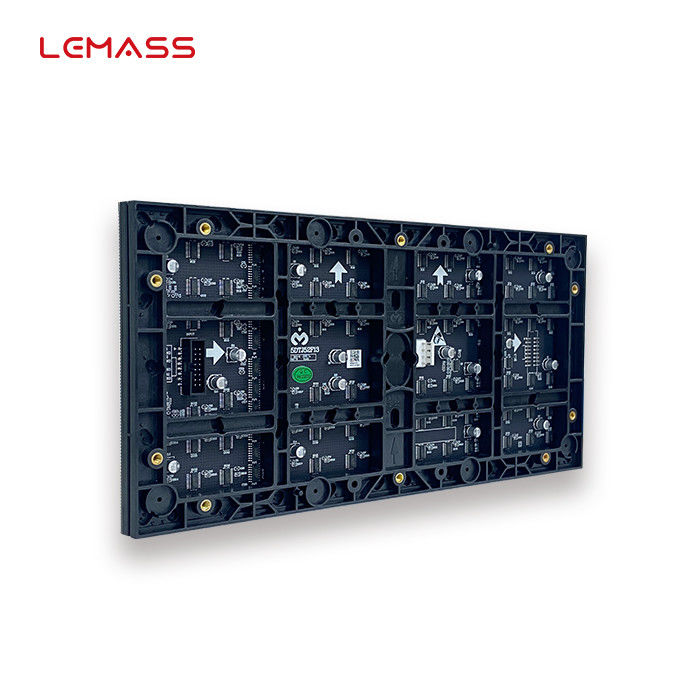

SMD 2121 Indoor LED Display Module P2.5 With 850cd/Sqm Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 led display panel screen indoor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Led Display Panel Screen Indoor | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 128×64 |
| Features: | Pixel By Pixel Correction | Brightness: | 850cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.47±0.05 |
| High Light: | 2121 Indoor LED Display Module,Indoor LED Display Module SMD,Indoor p2.5 led module |
||
Product Description
P2.5 led display panel screen indoor 320*160mm MSG Series High refresh and high quality drive IC
Description:
Businesses in a variety of industries use LED signs and LED message centers. This is typical of casinos, sports arenas, car dealers, shopping centers, and even busy transportation hubs such as airports and train stations often use LED message centers to share information about events, schedules, or promotions.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG2.5 |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 128×64 |
| Mask | No |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 850 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤420,Ave:≤140 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in shopping malls, exhibition halls, conference centers, etc.
