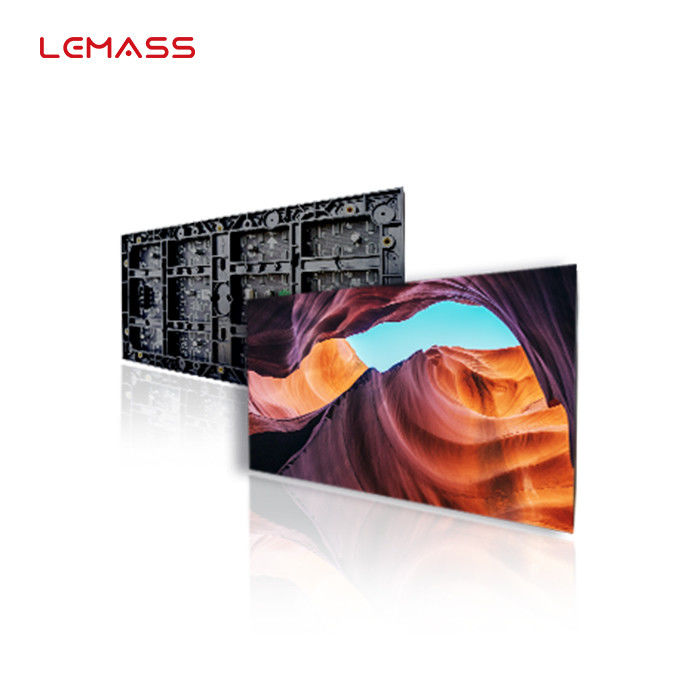

P4 Indoor LED Display Module 320×160mm Support 3D HDR Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P4(L) indoor led display board |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P4(L) Indoor Led Display Board | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 4mm | Resolution: | 80×40 |
| Features: | Pixel By Pixel Correction | Brightness: | 850cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.47±0.05 |
| High Light: | P4 Indoor LED Display Module,3D Indoor LED Display Module,HDR p4 indoor led module |
||
Product Description
P4(L) indoor led display board 320*160mm MSG Series support 3D/HDR display
Description:
BETTER FOR STAYING TRUE TO YOUR BRAND: Because LED signs have a wide choice of colors, fonts and high definition graphics, they help you stay true to your branding efforts. LED signs help tell your story about what makes your business stand out. Using engaging content, allows for better showcasing your enterprise.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG4(L) |
| Pixel Pitch (mm) | 4 |
| Pixel Density (pixels/sqm) | 62,500 |
| Module Resolution | 80×40 |
| Mask | No |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 850 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤420,Ave:≤140 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

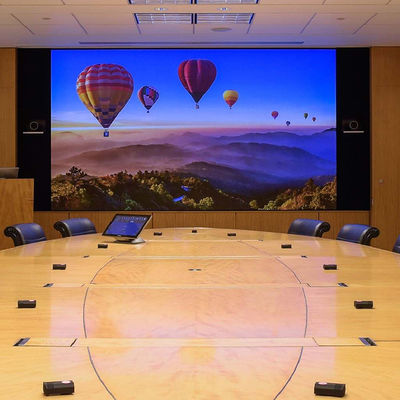

Widely used in shopping malls, exhibition halls, conference centers, etc.
