SMD 1515 Indoor LED Display Module , P1.8 Modular Led Display Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.8 modular led display panels |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.8 Modular Led Display Panels | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 1.86mm | Resolution: | 172×86 |
| Features: | Pixel By Pixel Correction | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.47±0.05 |
| High Light: | 1515 Indoor LED Display Module,P1.8 Indoor LED Display Module,SMD Modular Led Display Panels |
||
Product Description

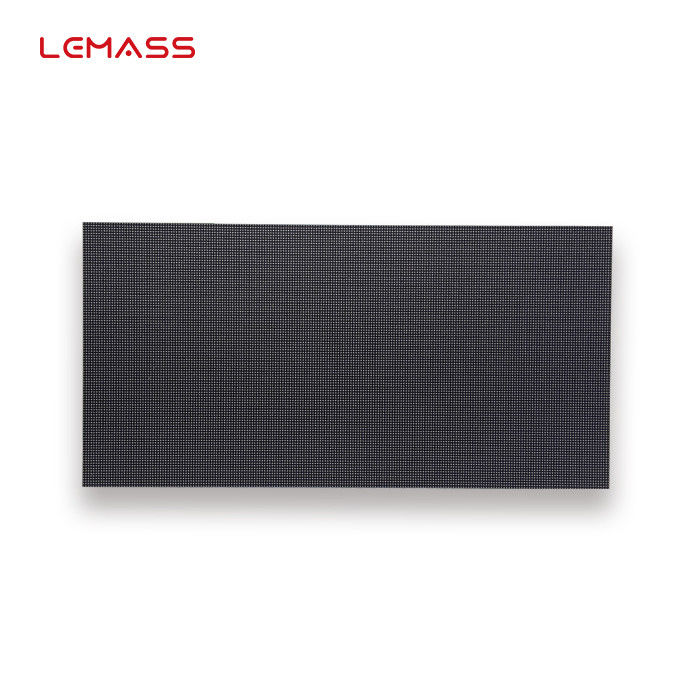

P1.8 modular led display panels 320*160mm MSG Series pixel by pixel correction
Description:
The modular digital LED screens allows any screen size or configuration to be created. The modules are available in a variety of sizes and also in a variety of pixel pitches. Display Innovations supplies, installs and offers support and maintenance for digital LED screens for a variety of applications.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG1.8 |
| Pixel Pitch (mm) | 1.86 |
| Pixel Density (pixels/sqm) | 288,906 |
| Module Resolution | 172×86 |
| Mask | Optional |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

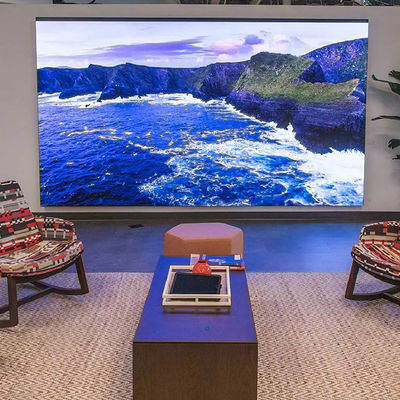

Widely used in shopping malls, exhibition halls, conference centers, etc.
