Multi Modular P2.6 Stage Rental LED Display Screen Carbon Fiber Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.6 stage lighting rental LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.6 Stage Lighting Rental LED Display | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 2.6mm | Resolution: | 192x192 |
| Features: | Carbon Fiber Structure | Brightness: | 500cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 8.0kg |
| High Light: | P2.6 Stage Rental LED Display,Multi Modular Stage Rental LED Display,Carbon Fiber stage rental led screen |
||
Product Description

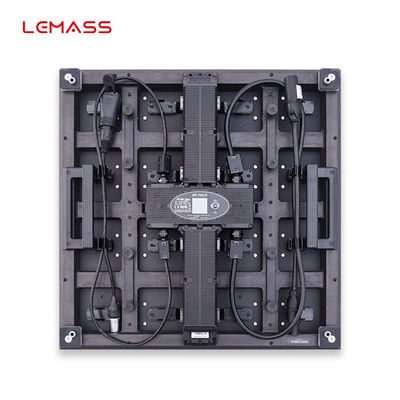

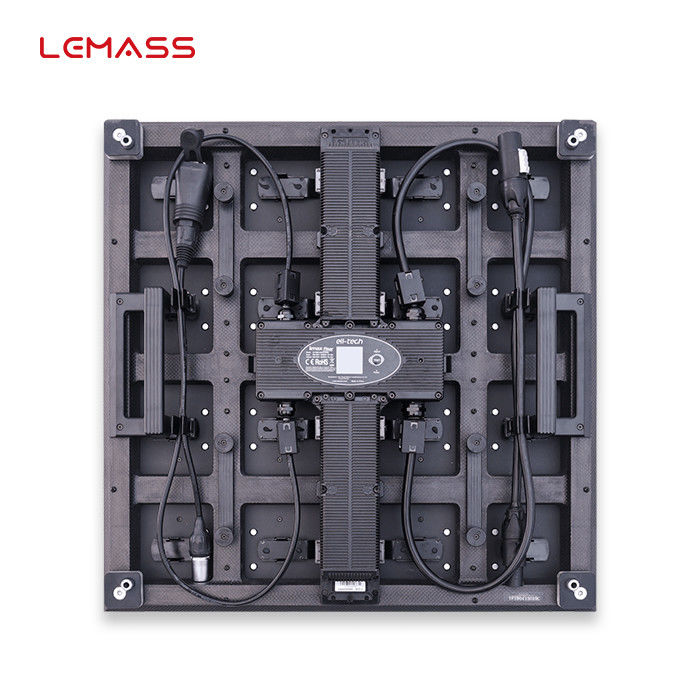

P2.6 stage lighting rental LED display 500*500mm LMS-CLF Series quick assembly
Description:

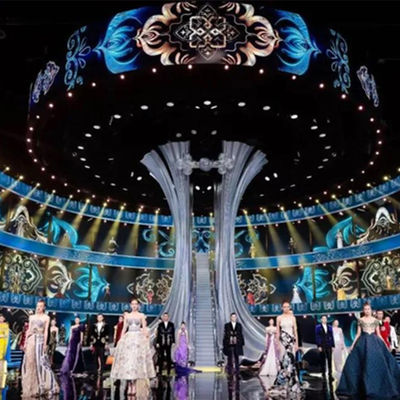

LMS-CLF Series Cabinet (carbon fiber frame structure, indoor&outdoor LED display, ratio 1:1) boasts quick assembly and front maintenance. fine-pitch CLF can effectively avoid the influence of moire lines. The combination of CLF and interactive systems brings users a perfect human-computer interaction experience. CLF have been used in many large-scale projects such as the Beijing Olympic Games and the stage of the CCTV Spring Festival Gala, etc.
Quick Detail:
· Carbon fiber structure
· LCD Visual monitoring
· Strong load-bearing capacity
· Multi-modular design
· Front maintenance design
· Quick assembly design
Specifications:
| Parameter Item | LMS-CLF2.6C-M2 | LMS-CLF2.6CD-M2 |
| Pixel Pitch (mm) | 2.6 | 2.6 |
| Pixel Density (pixels/sqm) | 147,456 | 147,456 |
| Module Resolution | 96x48 | 96x48 |
| Cabinet Resolution | 192x192 | 192x192 |
| Mask | optional | optional |
| Lamp Type | SMD1010 | SMD1010 |
| Cabinet Size (mm) | 500 x 500 x 80 | 500 x 500 x 80 |
| Cabinet Weight (kg) | 8 | 8.2 |
| Brightness (cd/sqm) | 500 | 500 |
| Gray Scale (Bit) | 14 | |
| Color Temp (k) | 3000-9000 | |
| Control System | Synchronous Control | |
| Protection Level | IP43 | |
| Intelligent Storage | No | |
| Frame Frequency (Hz) | 50/60FPS | |
| Refresh Rate(Hz) | 1920/3840(Optional) | |
| Working Voltage | 100-240V AC, 50/60Hz | |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 | Max:≤600,Ave:≤200 |
| Lifetime (hrs) | 100000 | |
| Operating Temp (℃) | -20～+40 | |
| Storage Temp (℃) | -35～+60 | |
| Humidity Range(Rh) | 10%~90%, Non-condensing | |
| Pixel Correction | Brightness And Color Correction | |
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
