Aluminum Structure Fine Pitch LED Display P1.2 AI Intelligent
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 Fine Pitch LED Display Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Fine Pitch LED Display Module | Size: | 320×180mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 256×144 |
| Features: | Color Gamut Up To 130% DCI-P3 | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 0.65±0.05 |
| High Light: | Fine Pitch LED Display P1.2,Aluminum Fine Pitch LED Display,Intelligent P1.2 LED Display |
||
Product Description

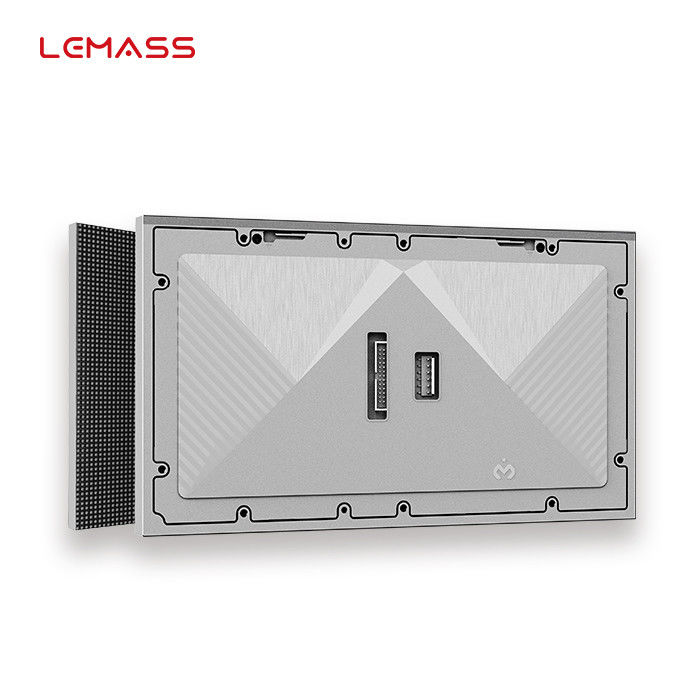

P1.2 Fine Pitch LED Display Module 320*180mm MSA Plus Series Aluminum AI Intelligent
Description:
MSA Plus Indoor Series LED module (aluminum shell structure design, golden ratio: 16:9) has 4K display effect, equipped with AI storage chip and intelligent color temperature adjustment. It supports various installation methods. MSA Plus is a wise choice for high-end conferences, controlling centers, data centers, commercial applications, etc.
Quick Detail:
· Ultra-thin&light aluminum structure
· 16:9 Standard Format
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSA1.2 Plus |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256×144 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 320×180×10 |
| Module Weight (kg) | 0.65±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤460, Ave:≤155 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

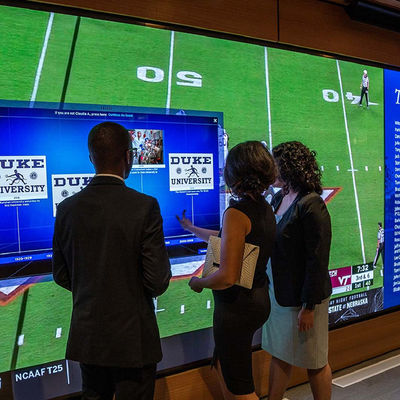

Applications:
Widely used in shopping malls, exhibition halls, conference centers, etc.
