Commercial Fine Pitch LED Display 1.538mm Small Pixel Pitch 320×180mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 small pixel pitch LED display module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Small Pixel Pitch LED Display Module | Size: | 320×180mm |
|---|---|---|---|
| Pixel Pitch: | 1.538mm | Resolution: | 208×116 |
| Features: | Color Gamut Up To 130% DCI-P3 | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1212 | Weight: | 0.65±0.05 |
| High Light: | Commercial Fine Pitch LED Display,Fine Pitch LED Display 1.538mm,180mm small pitch led display |
||
Product Description

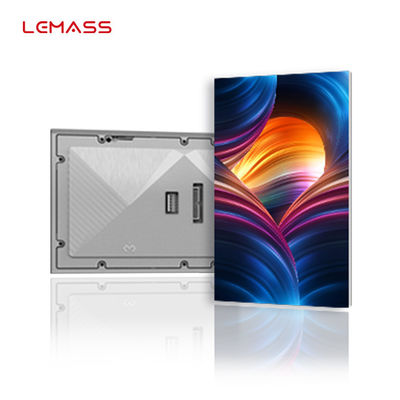

P1.5 small pixel pitch LED display module 320*180mm MSA Plus Series 16:9 Standard Format
Description:
An increase in demand for high quality video displays has led to rapid technological progress in LED display technology. One of the obvious improvements is the dramatic change in the physical distance between pixels on the LED screen. The physical distance between pixels or LED clusters is known as pixel pitch. Pixel pitch is measured in millimeters (mm). As technology advances, pixel pitch is getting smaller and higher resolution is becoming possible. When pixel pitch is getting smaller than 2.5mm, fine pitch LED is born.
Quick Detail:
· Ultra-thin&light aluminum structure
· 16:9 Standard Format
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSA1.5 Plus |
| Pixel Pitch (mm) | 1.538 |
| Pixel Density (pixels/sqm) | 422,500 |
| Module Resolution | 208×116 |
| Mask | Optional |
| Lamp Type | SMD1212 |
| Module Size (mm) | 320×180×10 |
| Module Weight (kg) | 0.65±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370, Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in shopping malls, exhibition halls, conference centers, etc.
