P1.5 Waterproof IP40 Fine Pitch LED Display Screen With Carbon Fiber Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 carbon fiber frame LED display rental cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Carbon Fiber Frame LED Display Rental Cabinet | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 1.5mm | Resolution: | 320×320 |
| Features: | System & PSU Backup | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 4.3±0.05 |
| High Light: | IP40 Fine Pitch LED Display,Waterproof Fine Pitch LED Display,Carbon Fiber fine pitch led screen |
||
Product Description

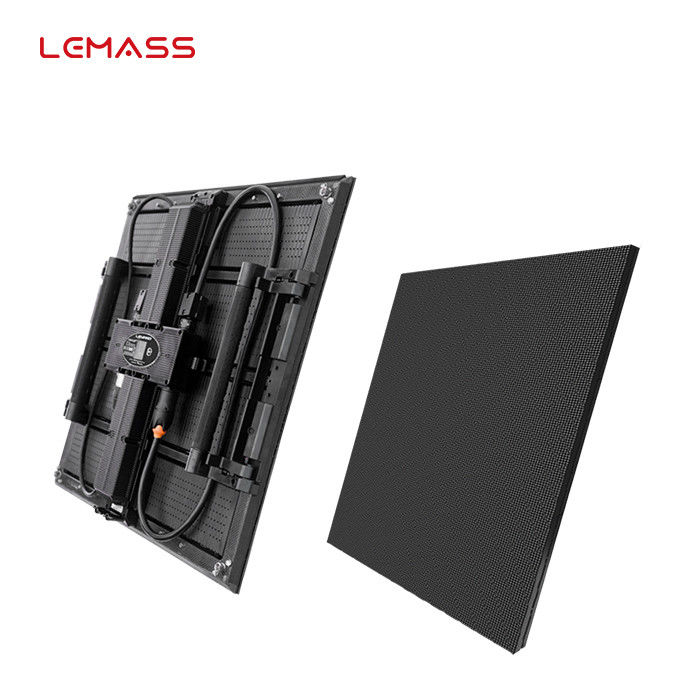

P1.5 carbon fiber frame LED display rental cabinet 500*500mm LMS-CLI Series waterproof IP40
Description:
CLI Series Cabinet (carbon fiber frame technology, indoor LED display, ratio 1:1) has the characteristics of weather resistance, corrosion resistance and mechanical stability. The display unit has strong tensile ability with designed quick-install locking system and supports large-scale hanging installation. Especially suitable for the rental and fixed-installation.
Quick Detail:
· High color uniformity
· Screen unit automatic check
· Front and rear maintenance
· 45° bevel anti-bump design
· System & PSU Backup
· LCD Visual monitoring
Specifications:
| Parameter Item | LMS-CLI 1.5 |
| Pixel Pitch (mm) | 1.5 |
| Pixel Density (pixels/sqm) | 409,600 |
| Module Resolution | 160x80 |
| Cabinet Resolution | 320×320 |
| Mask | No |
| Lamp Type | SMD1010 |
| Cabinet Size (mm) | 500×500×63 |
| Cabinet Weight (kg) | 4.3±0.05 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3500~9000 |
| Control System | Synchronous Control |
| Protection Level | IP40 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 30FPS~70FPS |
| Refresh Rate(Hz) | ≥2400 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤1000,Ave:≤400 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -35~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

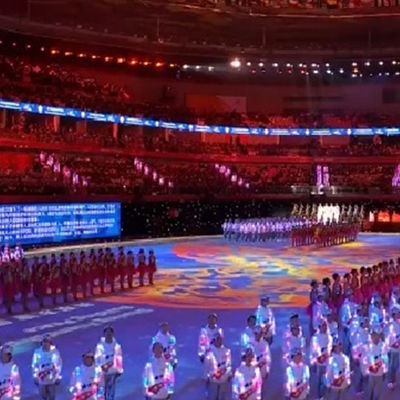

Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
