P2.5 Fine Pitch LED Display For Indoor Advertising Support 3D HDR
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 indoor advertising led fine pitch module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Indoor Advertising Led Fine Pitch Module | Size: | 320×180mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 128×72 |
| Features: | Color Gamut Up To 130% DCI-P3 | Brightness: | 850cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.65±0.05 |
| High Light: | P2.5 Fine Pitch LED Display,Advertising Fine Pitch LED Display,Indoor fine pitch display |
||
Product Description

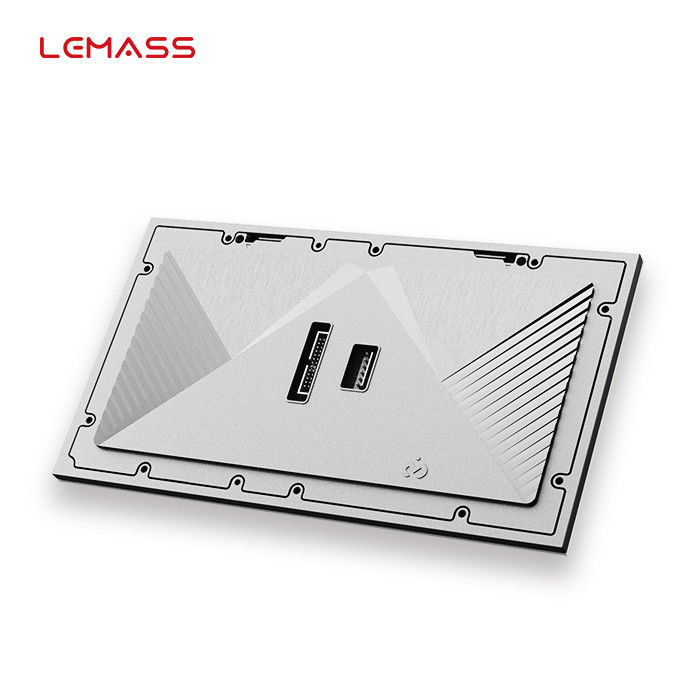

P2.5 indoor advertising led fine pitch module 320*180mm MSA Plus Series support 3D/HDR display
Description:
the distance from the center of a pixel to the center of the adjacent pixel is known as pixel pitch. Smaller pixel pitch means higher pixel density. Higher pixel density means there are more pixels within a limited space. We can achieve a higher screen resolution with a smaller screen, as long as the pixel density is high enough. Smaller pixel pitch also allows closer viewing distance. Outdoor LED screen generally has larger pixel pitch such as 10mm because it does not need to provide a close viewing experience. However, unlike outdoor LED screen, indoor LED display needs to serve viewers who might stand or sit closer to the screen. When the viewing distance is short and the pixel pitch is large, the image might look less defined with the distraction of discerning individual pixels.
Quick Detail:
· Ultra-thin&light aluminum structure
· 16:9 Standard Format
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSA2.5 Plus |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 128×72 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×180×10 |
| Module Weight (kg) | 0.65±0.05 |
| Brightness (cd/sqm) | 850 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤420, Ave:≤140 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

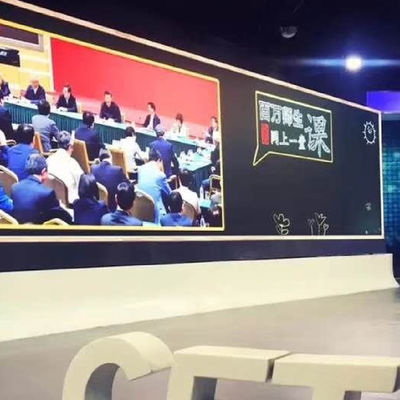

Applications:
Widely used in shopping malls, exhibition halls, conference centers, etc.
