P35 SMD Dot Creative LED Display Screen With 18×18 Light Point
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | ≥P35 SMD dot LED creative light display 18*18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | ≥P35 SMD Dot LED Creative Light Display 18*18 | Light Point Size: | 18x18x17.9 |
|---|---|---|---|
| Weight: | ＜5g | Pixel Composition: | SMD3535 1 |
| Point Brilliance: | 2.5 | Features: | High Transparency |
| Refresh Rate: | ≥2000 | Single Point Power: | 0.45 |
| High Light: | P35 Creative LED Display Screen,SMD Creative LED Display Screen,18×18 creative led screen |
||
Product Description

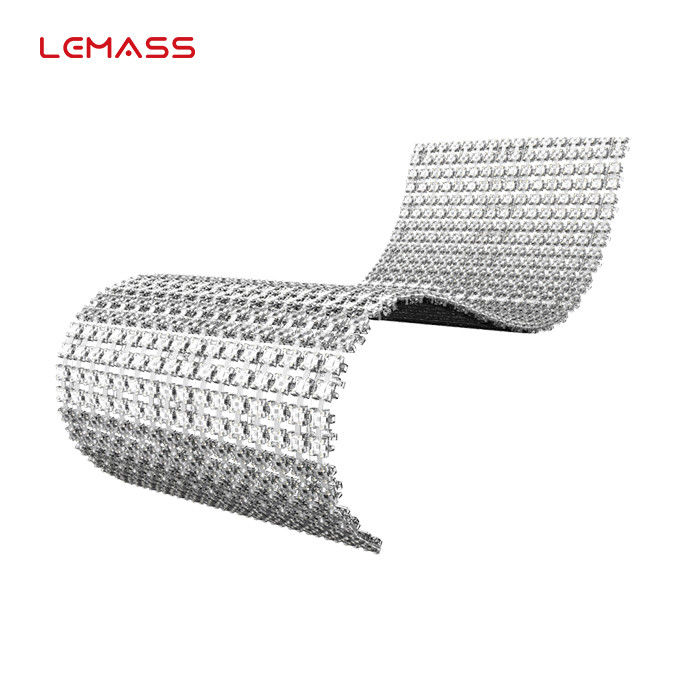

≥P35 SMD dot LED creative light display 18*18 light point LMS-ECO high contrast ratio
Description:
What is pixel pitch?
Pixel pitch is a term that refers to the pixels density or clusters of LED over an LED display and is related to the resolution. Pixel pitch, often known as dot pitch or LED pitch, is a distance measured in millimetres between the centre of one pixel and the centre of the subsequent pixel. A narrower pixel pitch suggests there is less space between pixels, as pixel pitch shows the amount of space between two pixels. This translates to increased pixel density and screen resolution.
Quick Detail:
· High Transparency | 85%
· Ultra Light and Thin
· High Contrast Ratio
· Outdoor Waterproof
· Anti-fire
· Stable System Good Operation
Specifications:
| Parameter Item | LMS-ECO SM-1 |
| Pixel Pitch (mm) | 35mm/40mm/55mm/80mm/100mm/110mm/160mm/Xmm |
| Pixel composition | SMD3535 1 |
| Light Point Size (mm) | 18x18x17.9 |
| Light Point Weight (g) | ＜5 |
| Point Brilliance | 2.5 |
| Gray Scale (Bit) | 12 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 60FPS |
| Refresh Rate (Hz) | ≥2000 |
| Working Voltage | DC 7.5 |
| Single Point Power | 0.45 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+75 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range | 10%~90%, Non-condensing |
Details about the product:

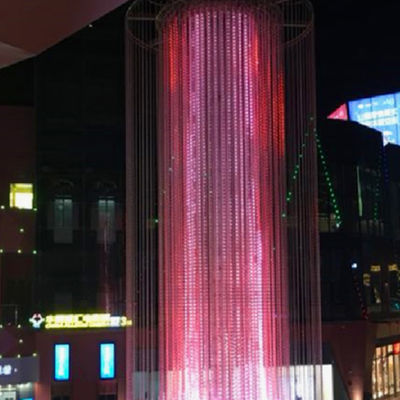

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
