P10.4 Window Creative LED Display Screen Transparent Multifunctional
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10.4 window LED transparent display screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10.4 Window LED Transparent Display Screen | Size: | 2000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:10.4mm V:10.4mm | Resolution: | 192×96 |
| Features: | High Transparency | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD3510 | Weight: | 6+0.05kg |
| High Light: | P10.4 Creative LED Display Screen,Multifunctional Creative LED Display Screen,Creative transparent led window display |
||
Product Description

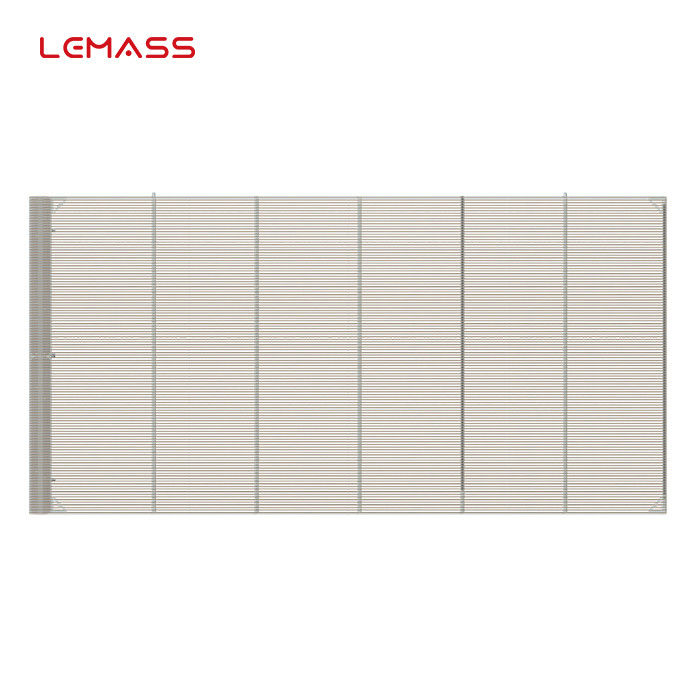

P10.4 window LED transparent display screen LMS-Isky 5500nit/㎡
Description:
Perfectly engineered with modular benefits
Created for high-profile installations, LMS-Isky is a lightweight, modular system. It is easy to install and delivers extraordinary brightness and high resolution. Power supplies and receiving cards are built into the modules, and power cables are easily connected, plus a handle is built into the back of each module making it easy to assemble, disassemble, and handle your display.
Quick Detail:
· High Transparency | Above 90%
· High Brightness | 5500nit/㎡
· Tube Design
· Easy Maintenance
· Customized Size And Shape
Specifications:
| Parameter Item | LMS-Isky-N10.4 |
| Pixel Pitch (mm) | H:10.4 V:10.4 |
| Pixel Density (pixels/sqm) | 9,216 |
| Cabinet Resolution | 192×96 |
| Cabinet Size | 2000 x 1000 x 57 |
| Transparency Rate | ≧80% |
| Pixel composition | SMD3510 |
| Cabinet Weight (kg) | 6 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP30 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥1920 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤720,Ave:≤260 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

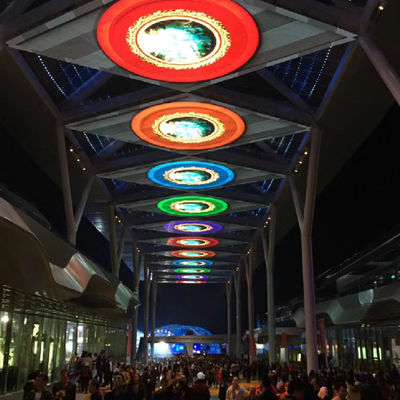

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
