P20.8 Large Creative LED Display Screen Transparent For Advertising ODM
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P20.8 large LED transparent video wall screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P20.8 Large LED Transparent Video Wall Screen | Size: | 2000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:20.8mm V:20.8mm | Resolution: | 96×48 |
| Features: | High Transparency | Brightness: | 4000cd/sqm |
| Lamp Type: | SMD3510 | Weight: | 5+0.05kg |
| High Light: | Large Creative LED Display Screen,P20.8 Creative LED Display Screen,ODM Large LED Display Screen |
||
Product Description

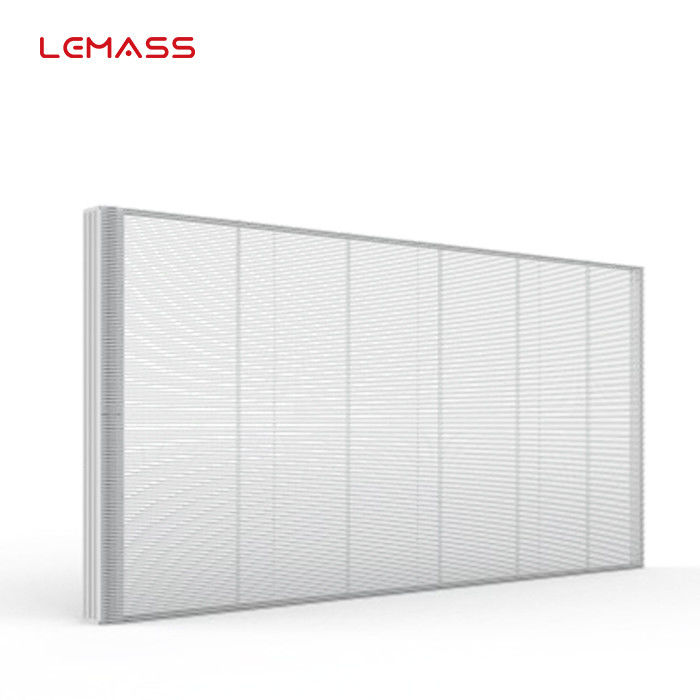

P20.8 large LED transparent video wall screen LMS-Isky customized size and shape
Description:
Make your LED video curtain come alive and attract the attention it deserves
Using the LMS-Isky Wall series, you can create a stunning display and reuse it when and where you need it. The system is easy to reconfigure on the fly, to create transparent LMS-Isky to suit your precise needs that will set you apart.
Quick Detail:
· High Transparency | Above 90%
· High Brightness | 5500nit/㎡
· Tube Design
· Easy Maintenance
· Customized Size And Shape
Specifications:
| Parameter Item | LMS-Isky-T20.8 |
| Pixel Pitch (mm) | H:20.8 V:20.8 |
| Pixel Density (pixels/sqm) | 2,304 |
| Cabinet Resolution | 96×48 |
| Cabinet Size | 2000 x 1000 x 57 |
| Transparency Rate | ≧92% |
| Pixel composition | SMD3510 |
| Cabinet Weight (kg) | 5 |
| Brightness (cd/sqm) | 4000 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP30 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤220 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
