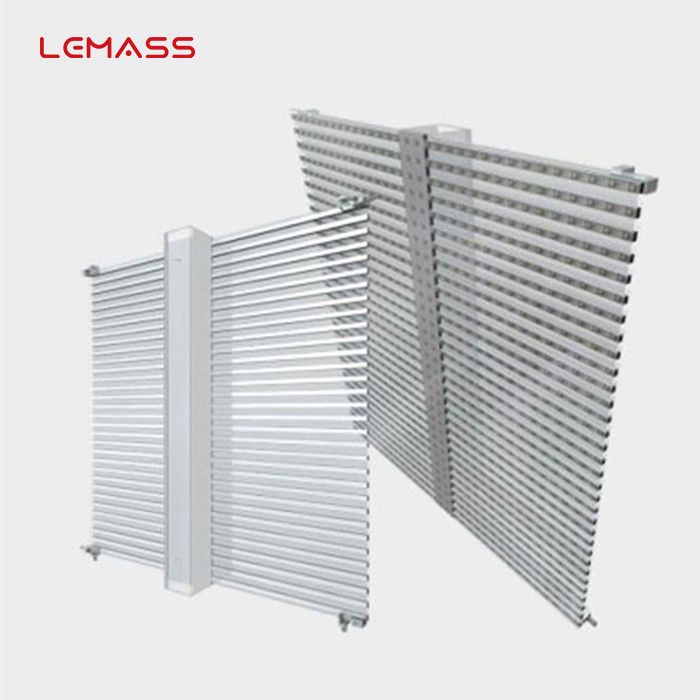

P31 Stage Transparent LED Screen Display 1000×1000mm With Aluminum Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P31 stage lighting transparent LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P31 Stage Lighting Transparent LED Display | Size: | 1000×1000mm |
|---|---|---|---|
| Pixel Pitch: | H:31.25mm V:31.25mm | Resolution: | 32×32 |
| Features: | High-flame-retardant PC Material | Brightness: | 7000cd/sqm |
| Lamp Type: | SMD3535 | Transparency Rate: | 60% |
| High Light: | P31 Transparent LED Screen Display,1000mm Transparent LED Screen Display,Aluminum Frame led screen transparent |
||
Product Description
P31 stage lighting transparent LED display 1000*1000mm energy-saving
Description:
How Does a Transparent LED Screen Work?
A transparent LED screen offers appealing, unique, and cost-effective use. These features come from its unique design that helps regulate power consumption better. Have a look at how the transparent LED screen works. The transparent led display has units of the pixel that determine output quality. The light-emitting diode makes up the pixel results in these screens. The transparent led display screens are an enhanced version of standard LED screens. These screens use a network of structured LED lamps that showcase the content the users want to see. These transparent LED displays have a thickness of about 1mm, making them very sleek and allowing them to blend into their environment easily. The glass plates also have a standard distance of 5 μm intervals on each section with liquid crystal material lined up on the screens.
Quick Detail:
· Light bar can be seperated for maintenance and adjustment
· Aluminum frame for better heat dissipation
· Strong protection structure for various environment
· High transparency and flexible assembling
· Ultra HD 4K 160° viewing angle High quality PWM drive IC
· Customizable products appearance color matching
Specifications:
| Parameter Item | LMS-MESH-3131 |
| Pixel Pitch (mm) | H:31.25 V:31.25 |
| Pixel Density (pixels/sqm) | 1,024 |
| Cabinet Resolution | 32×32 |
| Cabinet Size | 1000×1000×86 |
| Transparency Rate | 60% |
| Pixel composition | 2×SMD3535 |
| Cabinet Weight (kg) | 18 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤460,Ave:≤180 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -30~+50 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

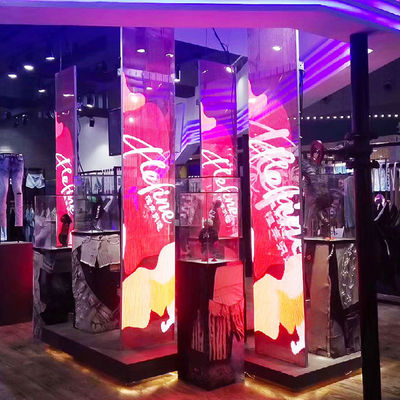

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
