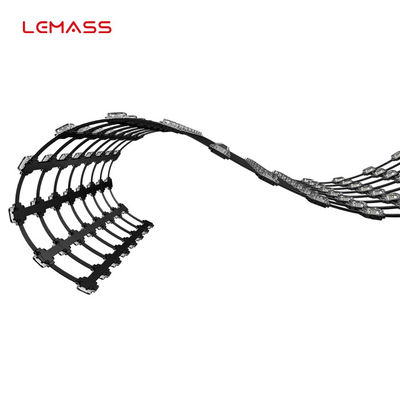

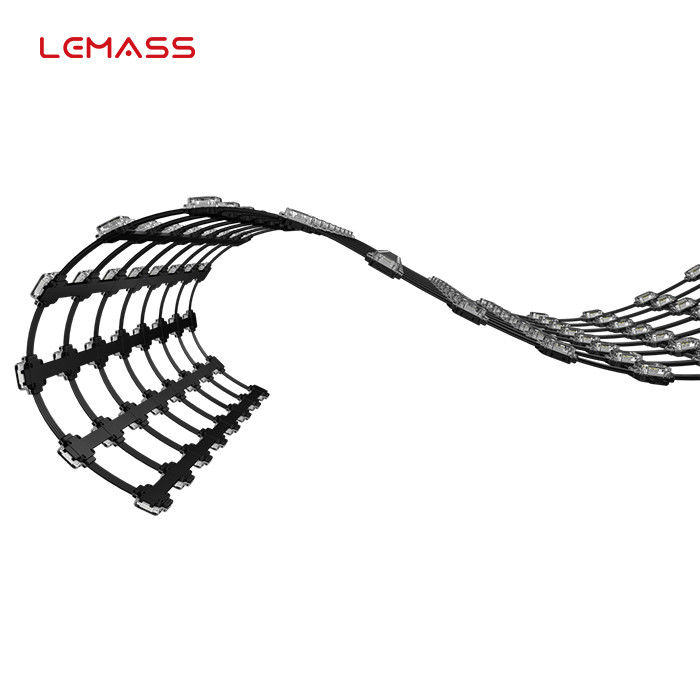

SMD 2727 LED Display Screen Outdoor Waterproof With 18×18 Light Point
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | ≥P40 SMD dot pitch LED display screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | ≥P40 SMD Dot Pitch LED Display Screen | Light Point Size: | 18x18x10.5 |
|---|---|---|---|
| Weight: | ＜4.6g | Pixel Composition: | SMD 2727 2 |
| Point Brilliance: | 5 | Features: | High Transparency |
| Refresh Rate: | ≥2000 | Single Point Power: | 0.6 |
| High Light: | 2727 LED Display Screen,SMD LED Display Screen,Waterproof LED Screen Display |
||
Product Description
≥P40 SMD dot pitch LED display screen 18*18 light point LMS-ECO transparency 85%
Description:
The definition of dot pitch
CRT monitors and flat-screen displays both have dot pitch. While some large-screen CRTs have a dot pitch of 0.51 mm, many computer displays have a dot pitch of 0.25 to 0.28 mm. Similarly, the dot pitch on most LCD panels is between 0.20 and 0.28 mm. Dot pitches as low as 0.15 mm are found on some high-end screens intended for scientific or medical images. These screens are frequently several times more expensive than consumer displays of comparable size.
Quick Detail:
· High Transparency | 85%
· Ultra Light and Thin
· High Contrast Ratio
· Outdoor Waterproof
· Anti-fire
· Stable System Good Operation
Specifications:
| Parameter Item | LMS-ECO-2 |
| Pixel Pitch (mm) | 35mm/40mm/55mm/80mm/100mm/110mm/160mm/Xmm |
| Pixel composition | SMD 2727 2 |
| Light Point Size (mm) | 18x18x10.5 |
| Light Point Weight (g) | ＜4.6 |
| Point Brilliance | 5 |
| Gray Scale (Bit) | 12 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 60FPS |
| Refresh Rate (Hz) | ≥2000 |
| Working Voltage | DC 9 |
| Single Point Power | 0.6 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+75 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range | 10%~90%, Non-condensing |
Details about the product:

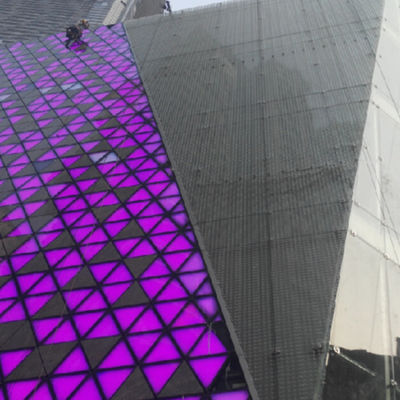

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
