DIP RGB Slim P25 MiniLED Display , LED Mesh Screen 40x40 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P25 DIP RGB slim and thin mesh type LED cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P25 DIP RGB Slim And Thin Mesh Type LED Cabinet | Size: | 1000 X 1000 |
|---|---|---|---|
| Pixel Pitch: | H:25mm V:25mm | Resolution: | 40x40 |
| Features: | High Transparency | Brightness: | 7000cd/sqm |
| Pixel Composition: | DIP RGB | Weight: | ≤14kg |
| High Light: | P25 MiniLED Display,RGB MiniLED Display,LED Mesh Screen 40x40 |
||
Product Description

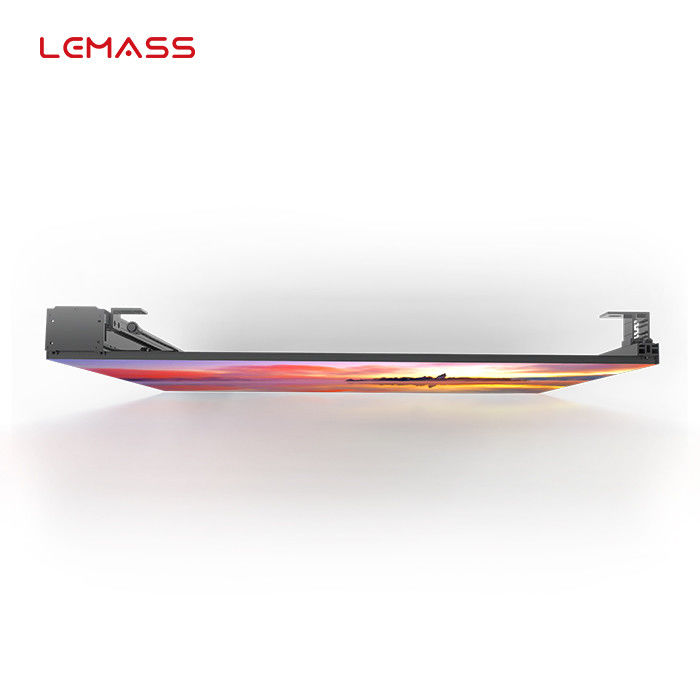

P25 DIP RGB slim and thin mesh type LED cabinet display LMS-ZBA easy to maintain
Description:
Unbeatable pixel pitch—the highest density for the highest resolution
Select the right pixel pitch for your display—from our 3.13x6.25mm pixel pitch up to 25x25mm pixel pitch. Our super high-density pixel pitch means sharper, more attractive, and noticeable imagery on your transparent display screen.
Quick Detail:
· Light Weight and Ultra-slim
· Waterproof and Dustproof
· Easy to Maintain
· Lower Power Consumption
· High Transparency-55%
· High and Low Temperature Protection
Specifications:
| Parameter Item | LMS-ZBA25 |
| Pixel Pitch (mm) | H:25 V:25 |
| Pixel Density (pixels/sqm) | 1,600 |
| Cabinet Resolution | 40x40 |
| Cabinet Size | 1000 x 1000 x 82 |
| Transparency Rate | 62% |
| Pixel composition | DIP RGB |
| Cabinet Weight (kg) | ≤14 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000-9000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤300,Ave:≤100 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -40~+50 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
