P15.6 Transparent Glass LED Display Panel Modular Synchronous Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P15.6 building glass curtain wall LED transparent screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P15.6 Building Glass Curtain Wall LED Transparent Screen | Size: | 1000x500x60mm / 500x500x60mm |
|---|---|---|---|
| Pixel Pitch: | H:15.625mm V:15.625mm | Resolution: | 64 X 32 32 X 32 |
| Features: | High Transparency | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD3510 | Weight: | 5.5+0.05kg |
| High Light: | P15.6 Transparent Glass LED Display,Transparent Glass LED Display Modular,led panel transparent synchronous control |
||
Product Description

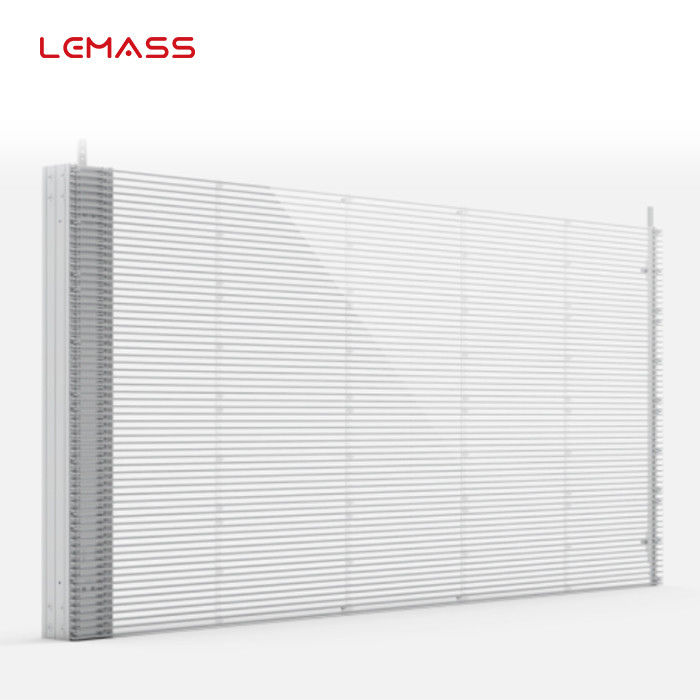

P15.6 building glass curtain wall LED transparent screen LMS-TF Pro synchronous control
Description:
Navigating your way around a new airport can be challenging for people, but the transparent screen makes it easier for users to know where they need to go. Many airports use these screens to share directions to particular locations to assist visitors. In addition, the transparent screen also helps share information and advertise particular products. Airports also use these screens to promote other businesses in waiting for travelers to see. Clubs, bars, cinemas, etc., use transparent screens for all their benefits. Smaller businesses advertise their products/services through these transparent screen displays, nail salons, dog walkers, etc. It also increases customer engagement while spending little to no on advertisement costs.
Quick Detail:
· High transparency
· Ultra-thin
· Modular design
· Wide viewing angle
· High brightness
· XR wide color gamut
Specifications:
| Parameter Item | LMS-Tfree-Pro-F15.6 |
| Pixel Pitch (mm) | H:15.625 V:15.625 |
| Pixel Density (pixels/sqm) | 4,096 |
| Cabinet Resolution | 64 x 32 / 32 x 32 |
| Cabinet Size | 1000x500x60 / 500x500x60 |
| Transparency Rate | ≧88% |
| Pixel composition | SMD3510 |
| Cabinet Weight (kg) | 5.5 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤720,Ave:≤260 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
