P2.6 SMD 2108 Creative LED Display Screen , Modular Transparent LED Display Outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.6 outdoor high refresh rate transparent LED cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.6 Outdoor High Refresh Rate Transparent LED Cabinet | Size: | 1000x500x60mm / 500x500x60mm |
|---|---|---|---|
| Pixel Pitch: | H:2.6mm V:5.2mm | Resolution: | 384 X 96 92 X 96 |
| Features: | High Transparency | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD2108 | Weight: | 7.5+0.05kg |
| High Light: | 2108 Creative LED Display Screen,Modular Creative LED Display Screen,P2.6 Transparent LED Display Outdoor |
||
Product Description

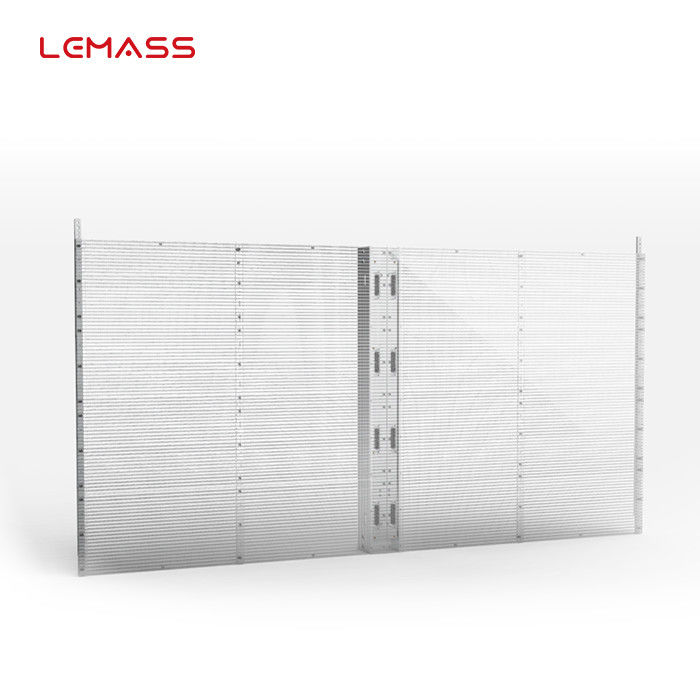

P2.6 outdoor high refresh rate transparent LED cabinet LMS-TF Pro modular design
Description:
Outdoor Billboards: The transparent led display screens have Polyethylene Terephthalate (PET) or Polycarbonate (PC) structures and solid and flexible materials. You can use them in outdoor locations without worrying about environmental protection or damage from external factors. These screens are best suited for locations along the road and make excellent advertisement sources. Companies use these billboards to showcase new product launches and message ads. They are also great for outdoor areas like bus stands, schools, colleges, museums, etc.
Quick Detail:
· High transparency
· Ultra-thin
· Modular design
· Wide viewing angle
· High brightness
· XR wide color gamut
Specifications:
| Parameter Item | LMS-Tfree-Pro-F7.8 |
| Pixel Pitch (mm) | H:2.6 V:5.2 |
| Pixel Density (pixels/sqm) | 73,728 |
| Cabinet Resolution | 384 x 96 / 92 x 96 |
| Cabinet Size | 1000x500x60 / 500x500x60 |
| Transparency Rate | ≧76% |
| Pixel composition | SMD2108 |
| Cabinet Weight (kg) | 7.5 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤800,Ave:≤260 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | 0~+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 35%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

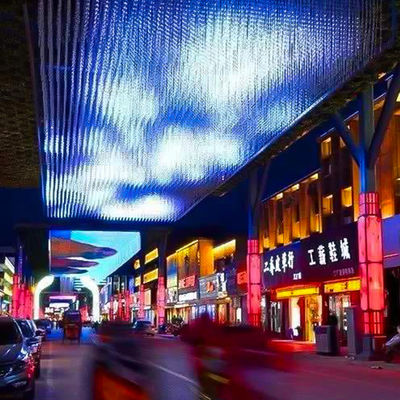

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
