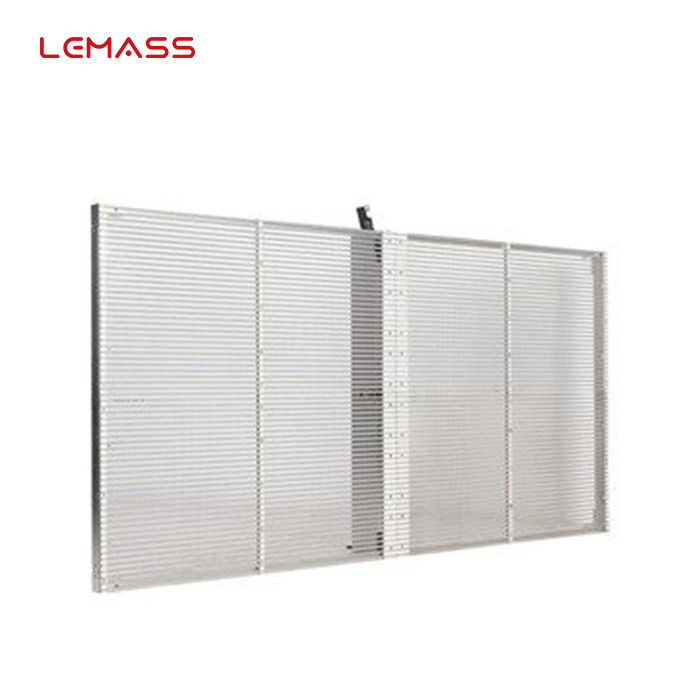

Waterproof Transparent LED Panels , P20 MicroLED Display Screen 1000×1000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P20 waterproof transparent LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P20 Waterproof Transparent LED Display | Size: | 1000×1000mm |
|---|---|---|---|
| Pixel Pitch: | H:20mm V:20mm | Resolution: | 50×50 |
| Features: | High-flame-retardant PC Material | Brightness: | 7000cd/sqm |
| Lamp Type: | SMD2727 | Transparency Rate: | 60% |
| High Light: | Transparent LED Panels 1000mm,P20 Transparent LED Panels,Waterproof MicroLED Display Screen |
||
Product Description
P20 waterproof transparent LED display 1000*1000mm convenient fast maintenance
Description:
No Air-Conditioner And Energy-Saving
Transparent LEDs are best known for light emission, good heat dissipation, and rear maintenance modes. In addition, the transparent led displays have a low power consumption rate, which enables the audience to use them commercially without a problem. The pixel density in these screens is very high, providing high-quality and life-like results in the display. These screens do not require air conditioning because of low heat production and are best for viewing at a distance. You can choose a fixed installation and get all these benefits on a single screen.
Quick Detail:
· Light bar can be seperated for maintenance and adjustment
· Aluminum frame for better heat dissipation
· Strong protection structure for various environment
· High transparency and flexible assembling
· Ultra HD 4K 160° viewing angle High quality PWM drive IC
· Customizable products appearance color matching
Specifications:
| Parameter Item | LMS-MESH-2020 |
| Pixel Pitch (mm) | H:20 V:20 |
| Pixel Density (pixels/sqm) | 2,500 |
| Cabinet Resolution | 50×50 |
| Cabinet Size | 1000×1000×86 |
| Transparency Rate | 60% |
| Pixel composition | 1×SMD2727 |
| Cabinet Weight (kg) | 16 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤270 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -30~+50 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

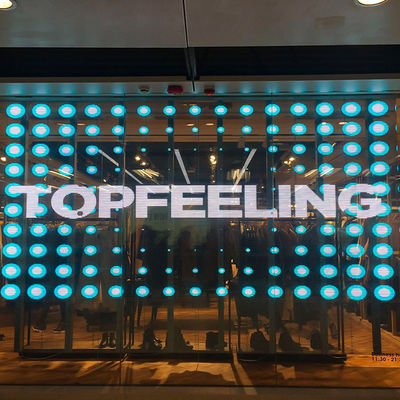

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
