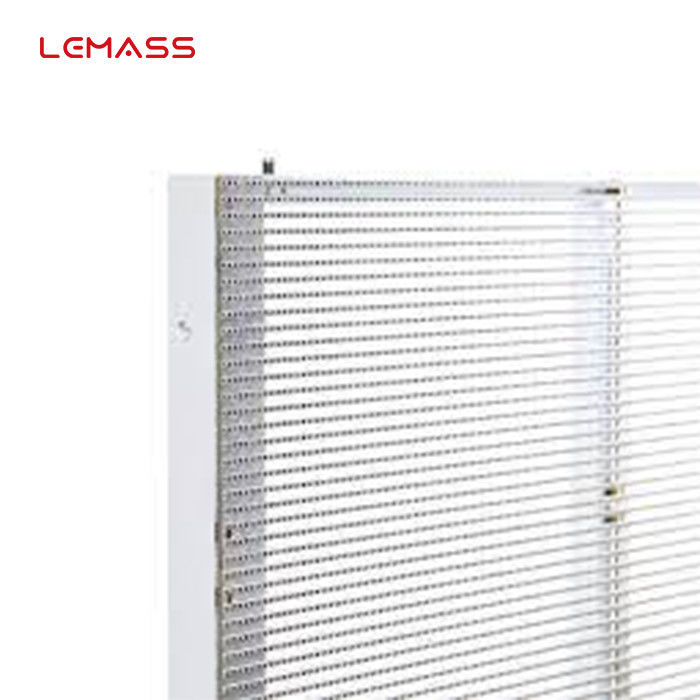

P15 slim lightweight transparent LED display 1000*1000mm HD 4K 160° viewing angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P15 slim lightweight transparent LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P15 Slim Lightweight Transparent LED Display | Size: | 1000×1000mm |
|---|---|---|---|
| Pixel Pitch: | H:15.62mm V:31.25mm | Resolution: | 60×30 |
| Features: | High-flame-retardant PC Material | Brightness: | 7000cd/sqm |
| Lamp Type: | SMD3535 | Transparency Rate: | 62% |
Product Description
P15 slim lightweight transparent LED display 1000*1000mm HD 4K 160° viewing angle
Description:
High Transparency Rate: The LED screens have a transparent led module that assists in creating digital signage on screens. You will find this characteristic only in transparent displays. These screens have 70% and 80% transparency rates, making them better than the average display effect you find with other screens. The higher transparency also aids commercial and advertisement purposes and helps keep the screens visible in all environments.
Quick Detail:
· Light bar can be seperated for maintenance and adjustment
· Aluminum frame for better heat dissipation
· Strong protection structure for various environment
· High transparency and flexible assembling
· Ultra HD 4K 160° viewing angle High quality PWM drive IC
· Customizable products appearance color matching
Specifications:
| Parameter Item | LMS-MESH-1633 |
| Pixel Pitch (mm) | H:16.67 V:33.33 |
| Pixel Density (pixels/sqm) | 1,800 |
| Cabinet Resolution | 60×30 |
| Cabinet Size | 1000×1000×86 |
| Transparency Rate | 62% |
| Pixel composition | 2×SMD3535 |
| Cabinet Weight (kg) | 13 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤270 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -30~+50 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

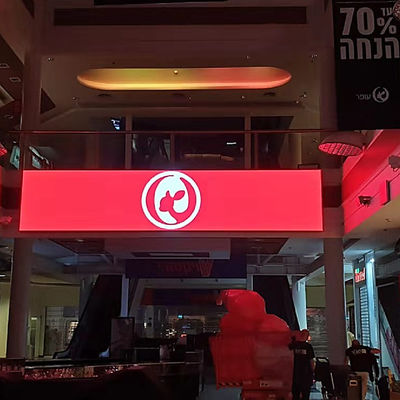

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
