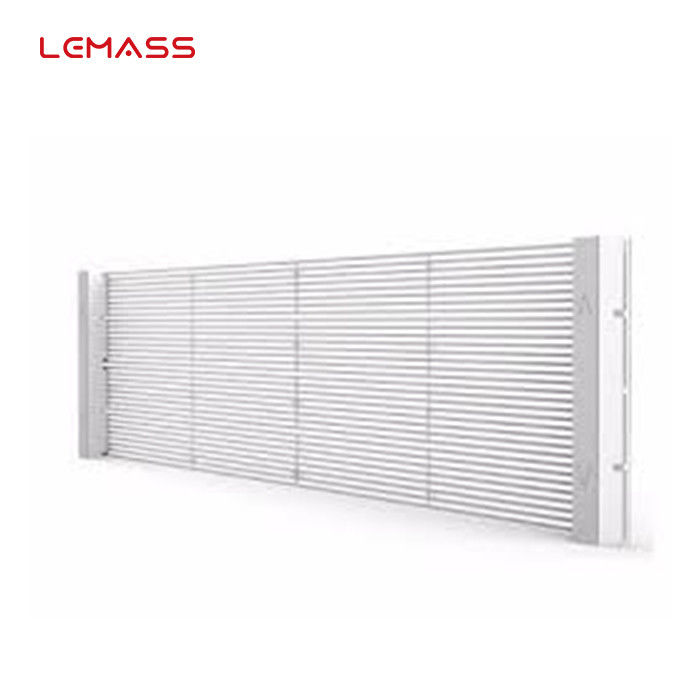

P15 high transparency LED advertising display 1000*500mm LMS-Mesh SMD3535
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P15 high transparency LED advertising display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P15 High Transparency LED Advertising Display | Size: | 1000×500mm |
|---|---|---|---|
| Pixel Pitch: | H:15.62mm V:31.25mm | Resolution: | 64×16 |
| Features: | High-flame-retardant PC Material | Brightness: | 7000cd/sqm |
| Lamp Type: | SMD3535 | Transparency Rate: | 60% |
Product Description
P15 high transparency LED advertising display 1000*500mm LMS-Mesh SMD3535
Description:
High Brightness Available: Brightness levels are an optimal way to attract attention. The transparent LED screens have high transparency levels. These screens also have a light-emitting diode, producing higher-quality light. In addition, these screens are a better option than an LCD screens because they also help reduce light pollution. The high availability of brightness makes the on-screen content crystal clear at night and during the daytime. The LED transparent screens also have a brightness adjustment option, making them best for all weather and environments.
Quick Detail:
· Light bar can be seperated for maintenance and adjustment
· Aluminum frame for better heat dissipation
· Strong protection structure for various environment
· High transparency and flexible assembling
· Ultra HD 4K 160° viewing angle High quality PWM drive IC
· Customizable products appearance color matching
Specifications:
| Parameter Item | LMS-MESH-1531 |
| Pixel Pitch (mm) | H:15.62 V:31.25 |
| Pixel Density (pixels/sqm) | 2,048 |
| Cabinet Resolution | 64×16 |
| Cabinet Size | 1000×500×86 |
| Transparency Rate | 60% |
| Pixel composition | 1×SMD3535 |
| Cabinet Weight (kg) | 6.7 |
| Brightness (cd/sqm) | 7000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -30~+50 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

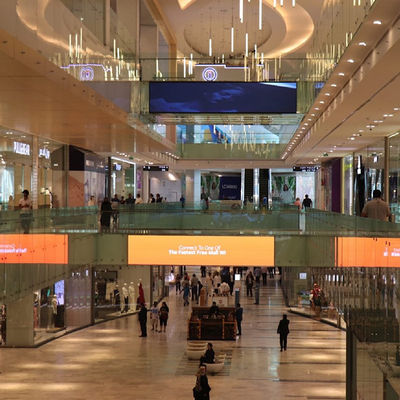

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
