P8 commercial transparent LED display1000*500mm LMS-Mesh custom appearance colors
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P8 commercial transparent LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P8 Commercial Transparent LED Display | Size: | 1000×500mm |
|---|---|---|---|
| Pixel Pitch: | H:8.33mm V:16.67mm | Resolution: | 120×30 |
| Features: | High-flame-retardant PC Material | Brightness: | 6000cd/sqm |
| Lamp Type: | SMD2727 | Transparency Rate: | 48% |
Product Description
P8 commercial transparent LED display1000*500mm LMS-Mesh custom appearance colors
Description:
What is a Transparent LED Screen?

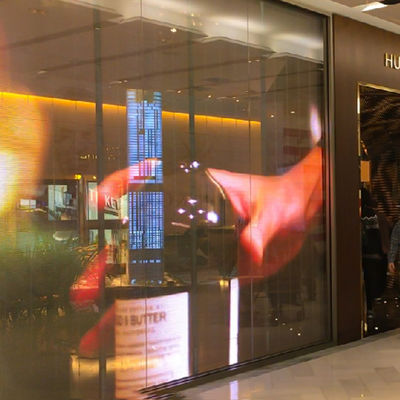

The screens have a glass-like surface which provides high-definition results for users. These screens are becoming increasingly popular for different reasons, and for starters, they can be installed anywhere with sufficient space. These LED screens are ideal for large areas and outdoor advertising, often like a glass curtain wall. Many people also use these screens as digital signage screens or for a transparent video wall. A fine led display offers a better display, and people use it for advertising media and products.
Quick Detail:

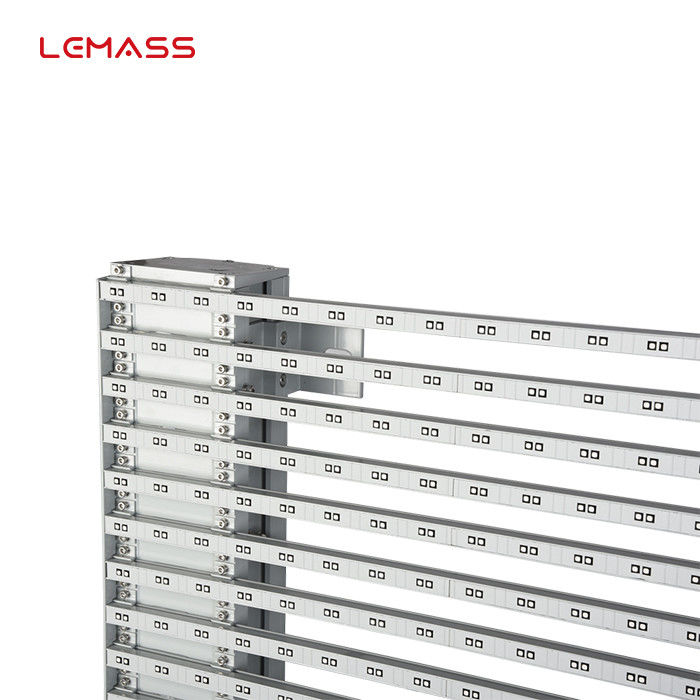

· Light bar can be seperated for maintenance and adjustment
· Aluminum frame for better heat dissipation
· Strong protection structure for various environment
· High transparency and flexible assembling
· Ultra HD 4K 160° viewing angle High quality PWM drive IC
· Customizable products appearance color matching
Specifications:
| Parameter Item | LMS-MESH-0816 |
| Pixel Pitch (mm) | H:8.33 V:16.67 |
| Pixel Density (pixels/sqm) | 7,200 |
| Cabinet Resolution | 120×30 |
| Cabinet Size | 1000×500×81 |
| Transparency Rate | 48% |
| Pixel composition | 1×SMD2727 |
| Cabinet Weight (kg) | 7 |
| Brightness (cd/sqm) | 6000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤240 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -30~+50 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
