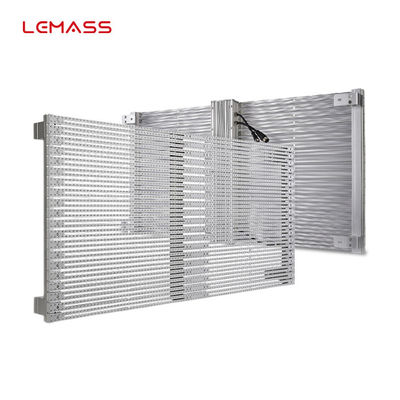

P6 transparent LED screen display 1000*500mm LMS-Mesh better heat dissipation
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P6 transparent LED screen display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case / Cabinet packing / Carton packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P6 Transparent LED Screen Display | Size: | 1000×500mm |
|---|---|---|---|
| Pixel Pitch: | H:6.25mm V:12.5mm | Resolution: | 160×40 |
| Features: | High-flame-retardant PC Material | Brightness: | 6000cd/sqm |
| Lamp Type: | SMD2727 | Transparency Rate: | 36% |
Product Description
P6 transparent LED screen display 1000*500mm LMS-Mesh better heat dissipation
Description:
LMS-Mesh Series is a creative LED displayy product that can be installed vertically orhorizontally.The overall structural designof the product is made of high-strengthand high thermal conductivity aluminumalloy material.Its mask and aviation plugare made of high-flame-retardant PC material,which supports passive heat dissipation.Products can support custom appearance colors.
Quick Detail:
· Light bar can be seperated for maintenance and adjustment
· Aluminum frame for better heat dissipation
· Strong protection structure for various environment
· High transparency and flexible assembling
· Ultra HD 4K 160° viewing angle High quality PWM drive IC
· Customizable products appearance color matching
Specifications:
| Parameter Item | LMS-MESH-0612 |
| Pixel Pitch (mm) | H:6.25 V:12.5 |
| Pixel Density (pixels/sqm) | 12,800 |
| Cabinet Resolution | 160×40 |
| Cabinet Size | 1000×500×88 |
| Transparency Rate | 36% |
| Pixel composition | 1×SMD2727 |
| Cabinet Weight (kg) | 8.5 |
| Brightness (cd/sqm) | 6000 |
| Gray Scale (Bit) | 16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP66 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤240 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -30~+50 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

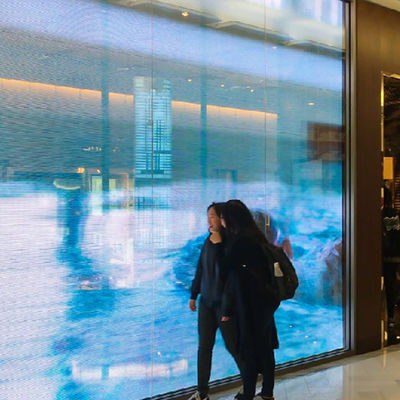

Applications:
Bring wider commercial applications, and let the large media advertising market, etc.
