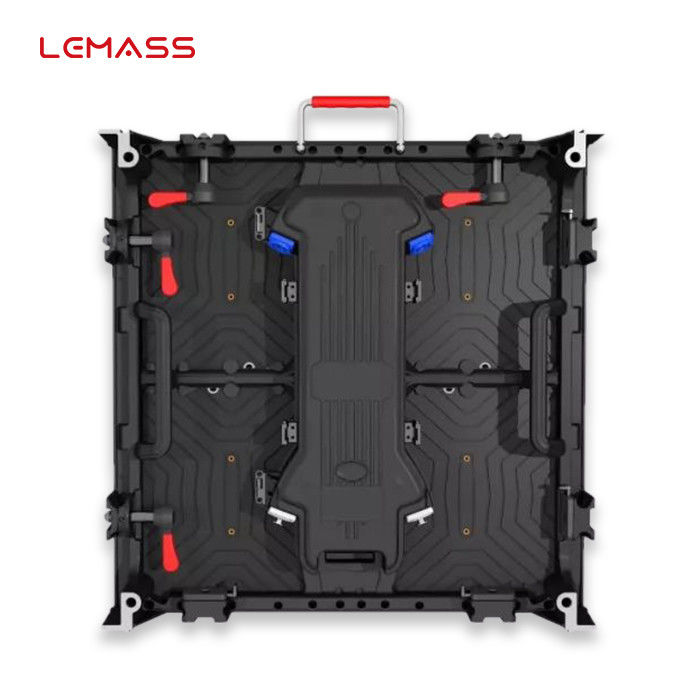

SMD 2020 Rental LED Cabinet P4.8 Anti Interference IP65 Waterproof
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.9-P4.8 rental led cabinet screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.9-P4.8 Rental Led Cabinet Screen | Size: | 500X500mm |
|---|---|---|---|
| Pixel Pitch: | 2.9-4.81mm | Features: | S-shaped Splicing |
| Brightness: | ≥800cd/sqm | Lamp Type: | SMD2020 |
| Weight: | 7±0.05kg | Material: | Die-cast Aluminum Structure |
| High Light: | 2020 Rental LED Cabinet,IP65 Rental LED Cabinet,Anti Interference Rental LED Cabinet |
||
Product Description
P2.9-P4.8 rental led cabinet screen LMS-ZST 1:1 ratio 40% lighter IP65 waterproof level
Description:
Unparalleled Expertise: At Lemass, our team has installed video walls for decades; with an exclusive focus on delivering unique, high-tech solutions for mission critical. This means we know better than anyone else how to put a level of care into our video wall installations and what products will work best to accomplish your goals. We’re proud to have worked with data-secure industries from governmental departments to transportation hubs, to weather teams, and to other tech companies. If there’s a need for visual wall solutions, trust us: we’ve got the right experience and industry knowledge to match your requirements.
Quick Detail:
· Efficient heat dissipation
· Strong anti-interference
· Easy to install and maintain
· Versatile and wide range of applications
· Front and rear maintenance
· Cost-effective and easy to transport
Specifications:
| Parameter Item | LMS-ZST2.9 | LMS-ZST3.9 | LMS-ZST4.8 |
| Pixel Pitch (mm) | 2.9 | 3.91 | 4.81 |
| Pixel Density (pixels/sqm) | 118,906 | 65,536 | 43,264 |
| Module Resolution | 86x86 | 64x64 | 52x52 |
| Cabinet Resolution | 172x172 | 128x128 | 104x104 |
| Mask | Optional | Optional | Optional |
| Lamp Type | SMD2020 | SMD2020 | SMD2020 |
| Module Size (mm) | 250X250 | ||
| Module Weight (kg) | 0.62±0.05 | ||
| Cabinet Size (mm) | 500X500 | ||
| Cabinet Weight (kg) | 7 | ||
| Brightness (cd/sqm) | ≥800 | ≥800 | ≥800 |
| Gray Scale (Bit) | 14~16 | ||
| Color Temp (k) | 2500~10000 | ||
| Control System | Synchronous Control | ||
| Protection Level | IP30 | ||
| Intelligent Storage | No | ||
| Frame Frequency (Hz) | 50/60FPS | ||
| Refresh Rate(Hz) | 1920/3840(Optional) | ||
| Working Voltage | AC:100V~240V, 50/60Hz | ||
| Power Consumption (W/ m²) | Max:≤510,Ave:≤190 | Max:≤510,Ave:≤190 | Max:≤510,Ave:≤190 |
| Lifetime (hrs) | 100,000 | ||
| Operating Temp (℃) | -20～+50 | ||
| Storage Temp (℃) | -40～+60 | ||
| Humidity Range(Rh) | 10%~90%, Non-condensing | ||
| Pixel Correction | Brightness And Color Correction | ||
Details about the product:
Applications:

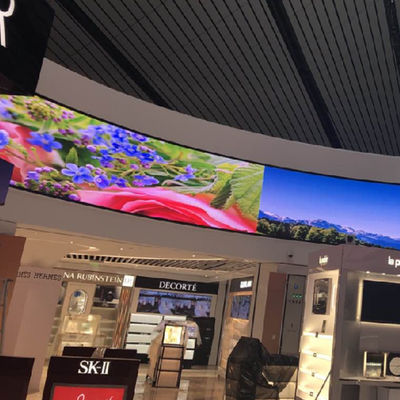

Widely used in stages, shopping malls, variety shows and other places, etc.
