Commercial Rental LED Cabinet , P2.9 Outdoor Rental LED Screen 168x168 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.9 outdoor hanging bar rental LED cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.9 Outdoor Hanging Bar Rental LED Cabinet | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 2.97mm | Resolution: | 168x168 |
| Features: | System & PSU Backup | Brightness: | 4500cd/sqm |
| Lamp Type: | SMD1415 | Weight: | 8.25±0.05 |
| High Light: | Outdoor Rental LED Cabinet,Rental LED Cabinet 168x168,P2.9 Outdoor Rental LED Screen |
||
Product Description

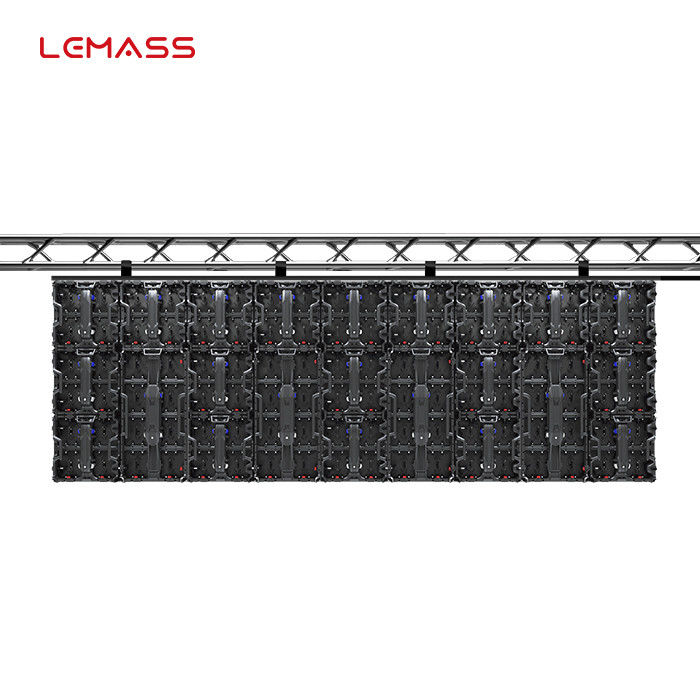

P2.9 outdoor hanging bar rental LED cabinet 500*500mm LMS-MSR Series cost-effective
Description:
Chooes the Right Display
(1) Figure out what pixel pitch and size of the screen your project will need. If you do not have the clue, just contact the suppliers to get some advice. They can help you to design the screen size, layout and operation.
You can also just contact us, and we have a professional team to answer your inquiry quickly and professionally.
(2) After the consultation, you may need to book in advance. Sometimes there will be out of stock and book in advance can ensure the screens are available for your event. So if you have the plan, then implement it as early as possible.
(3) Choose the right type you would like to display on your display. For the compatibility of content, you can leave this question to your provider, and they will have professional team to help you set up well.
Quick Detail:
· High uniformity for color display
· Front and rear maintenance
· System & PSU Backup
· Anti-collision structure of lamp
· Ultra-high refresh rate
· Easy to maintain and install
Specifications:
| Parameter Item | LMS-MSR2.9S |
| Pixel Pitch (mm) | 2.97 |
| Pixel Density (pixels/sqm) | 113,366 |
| Module Resolution | 84×84 |
| Cabinet Resolution | 168x168 |
| Mask | Standard |
| Lamp Type | SMD1415 |
| Module Size (mm) | 250×250×18 |
| Module Weight (kg) | 0.62±0.05 |
| Cabinet Size (mm) | 500×500×75 |
| Cabinet Weight (kg) | 8.25±0.05 |
| Brightness (cd/sqm) | 4500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | Optional |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤690,Ave:≤230 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

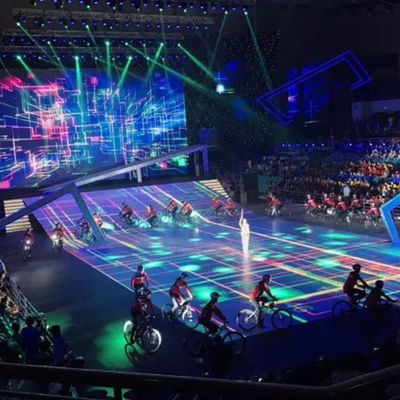

Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
