Outdoor P4.8 Rental LED Cabinet Screen 500×500mm With 4500cd/Sqm Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P4.8 outdoor quick assemble rental LED display cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P4.8 Outdoor Quick Assemble Rental LED Display Cabinet | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 4.8mm | Resolution: | 104x104 |
| Features: | System & PSU Backup | Brightness: | 4500cd/sqm |
| Lamp Type: | SMD1921 | Weight: | 8.25±0.05 |
| High Light: | P4.8 Rental LED Cabinet,4500cd/Sqm Rental LED Cabinet,500mm outdoor rental led screen |
||
Product Description
P4.8 outdoor quick assemble rental LED display cabinet 500*500mm LMS-MSR Series higher brightness
Description:
Reasons of Full Color LED Display Screen Turning Cyan?
The reason of why the screen show cyan but not other colors under such situations is mainly because of the structure of LED display screen. We all know the concept of RGB – red, green, and blue, and one LED lamp bead of a SMD LED display will contain these three colors, which we call three primaries for humans. If we want to display only green, then this LED lamp bead will only show green; if we want to light up at only red, then the LED lamp bead will show only red, and if we want to show full white, the three primary colors will be light up at the same time. Now you may already have some ideas on your own – why the screen sometimes will turn cyan? That may be caused by “minus red” because when we mix green and blue, we will get cyan!
Quick Detail:
· High uniformity for color display
· Front and rear maintenance
· System & PSU Backup
· Anti-collision structure of lamp
· Ultra-high refresh rate
· Easy to maintain and install
Specifications:
| Parameter Item | LMS-MSR4.8S |
| Pixel Pitch (mm) | 4.8 |
| Pixel Density (pixels/sqm) | 43,388 |
| Module Resolution | 52×52 |
| Cabinet Resolution | 104x104 |
| Mask | Standard |
| Lamp Type | SMD1921 |
| Module Size (mm) | 250×250×18 |
| Module Weight (kg) | 0.62±0.05 |
| Cabinet Size (mm) | 500×500×75 |
| Cabinet Weight (kg) | 8.25±0.05 |
| Brightness (cd/sqm) | 4500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | Optional |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤690,Ave:≤230 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

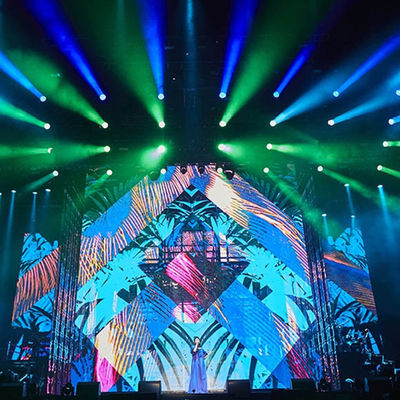

Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
