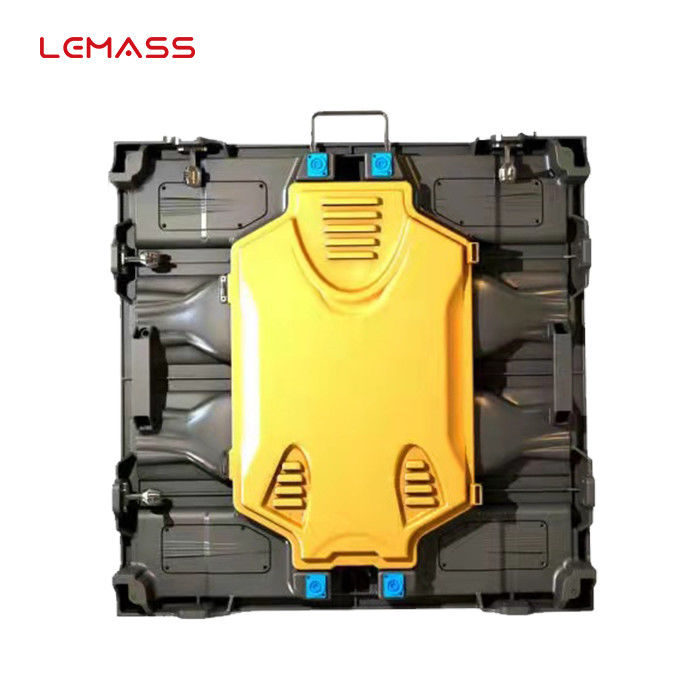

ODM P4 Indoor LED Screen Cabinet 850cd/Sqm Brightness With Automatic Alignment
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5-P4 indoor ODM high quality led lamp display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5-P4 Indoor ODM High Quality Led Lamp Display | Size: | 320×160×14mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Features: | Automatic Alignment |
| Brightness: | 850cd/sqm | Lamp Type: | SMD2121 |
| Weight: | 10±0.05kg | Material: | Die-cast Aluminum Structure |
| High Light: | ODM LED Screen Cabinet,P4 LED Screen Cabinet,Automatic Alignment p4 led cabinet |
||
Product Description
P2.5-P4 indoor ODM high quality led lamp display screen LMS-CV II ratio 1:1 quick installation
Description:

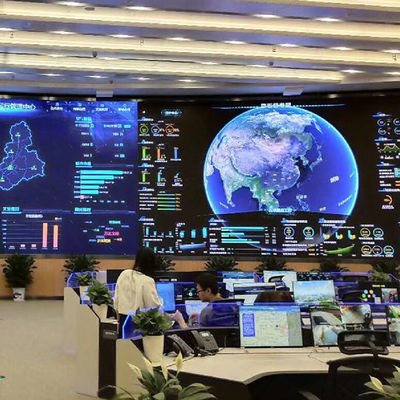

Video Walls for Mission Critical Facilities:
Our state-of-the-art video wall visualization systems feature top-performing products partnered with leading design and innovation. Lemass is second to none when it comes to video wall design for mission-critical command and control facilities. The technology in 24/7 operations centers must be held to higher standards than your average venue. Our video wall systems deliver the reliability demanded by mission-critical applications, in addition to stunning visuals and the latest display technology. Each of our Lemass Technologies video wall designs is purpose-built, and carefully installed by our team of experts. We use a vendor-agnostic approach to ensure that the technology we use is reliable and perfectly suited to your specific use case.
Quick Detail:
· Multi-scene application
· Front and rear maintenance
· Ultra-high refresh rate
· ODM high quality led lamp
· 160° ultra-wide viewing angle
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | CV Ⅱ2.5 | CV Ⅱ3 | CV Ⅱ4 |
| Pixel Pitch (mm) | 2.5 | 3.076 | 4 |
| Pixel Density (pixels/sqm) | 160,000 | 105,625 | 62,500 |
| Module Resolution | 128x64 | 104x52 | 80x40 |
| Cabinet Resolution | 256x256 | 208x208 | 160x160 |
| Mask | No | Optional | Optional |
| Lamp Type | SMD2121 | SMD2121 | SMD2121 |
| Module Size (mm) | 320×160×14 | ||
| Module Weight (kg) | 0.47±0.05 | ||
| Cabinet Size (mm) | 640x640x76 | ||
| Cabinet Weight (kg) | 10 | ||
| Brightness (cd/sqm) | 850 | 750 | 850 |
| Gray Scale (Bit) | 12~16 | ||
| Color Temp (k) | 2500~10000 | ||
| Control System | Synchronous Control | ||
| Protection Level | Front IP31, Rear IP31 | ||
| Intelligent Storage | No | ||
| Frame Frequency (Hz) | 50/60FPS | ||
| Refresh Rate(Hz) | 1920/3840(Optional) | ||
| Working Voltage | AC:100V~240V, 50/60Hz | ||
| Power Consumption (W/ m²) | Max:≤420,Ave:≤140 | Max:≤330,Ave:≤110 | Max:≤420,Ave:≤140 |
| Lifetime (hrs) | 100000 | ||
| Operating Temp (℃) | -10～+40 | ||
| Storage Temp (℃) | -25～60 | ||
| Humidity Range(Rh) | 10%~80%, Non-condensing | ||
| Pixel Correction | Brightness And Color Correction | ||
Details about the product:
Applications:
Widely used in stages, shopping malls, variety shows and other places, etc.
