P2.9 outdoor events large LED rental panel cabinet 500*500mm LMS-CER Series LCD visual monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.9 outdoor events large LED rental panel cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.9 Outdoor Events Large LED Rental Panel Cabinet | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 2.97mm | Resolution: | 168x168 |
| Features: | System & PSU Backup | Brightness: | 4500cd/sqm |
| Lamp Type: | SMD1415 | Weight: | 8±0.05 |
Product Description
P2.9 outdoor events large LED rental panel cabinet 500*500mm LMS-CER Series LCD visual monitoring
Description:
1. Quick Installation: Rental Led displays have an aluminum-based cabinet, which makes them lighter. It makes disassembling the parts more convenient and faster than you can expect. Thus, most technicians do not spend several hours splicing the cabinets. It makes the installation process quite time and money-saving.
2. Portable and Ultra-thin: The making of traditional led displays cabinets follows the SPCC procedure. They go through a series of soldering, bending, spraying, etc. While their cost is low, they are too hefty to move. After production, the traditional led display can weigh over 60kg per square meter. But, rental led displays are different since they are aluminum-based products. A standard rental led display weighs around 30-50kg/m2. They are lightweight and can conduct thermal energy.
Quick Detail:
· DIY splicing structure
· Multi-scene application
· LCD Visual monitoring
· Easy to maintain and install
· System & PSU Backup
· Support HDR display
Specifications:
| Parameter Item | LMS-CER2.9S |
| Pixel Pitch (mm) | 2.97 |
| Pixel Density (pixels/sqm) | 113,366 |
| Module Resolution | 84×84 |
| Cabinet Resolution | 168x168 |
| Mask | Standard |
| Lamp Type | SMD1415 |
| Module Size (mm) | 250×250 |
| Module Weight (kg) | 0.62±0.05 |
| Cabinet Size (mm) | 500×500×87 |
| Cabinet Weight (kg) | 8.25±0.05 |
| Brightness (cd/sqm) | 4500 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | Optional |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤690,Ave:≤230 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

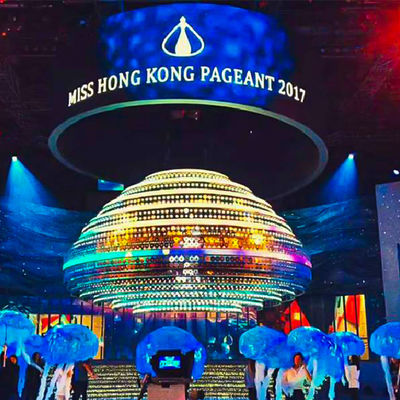

Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
