Commercial P10 LED Display Cabinet 128×72 Resolution For Outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10 SMD led outdoor display cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10 SMD Led Outdoor Display Cabinet | Size: | 1280x720mm |
|---|---|---|---|
| Pixel Pitch: | 10mm | Resolution: | 128×72 |
| Features: | 30% Energy Saving & IP66 Waterproof | Brightness: | 9000~11000cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 28±0.05kg |
| High Light: | Commercial P10 LED Display Cabinet,Outdoor P10 LED Display Cabinet,p10 led cabinet 128×72 |
||
Product Description

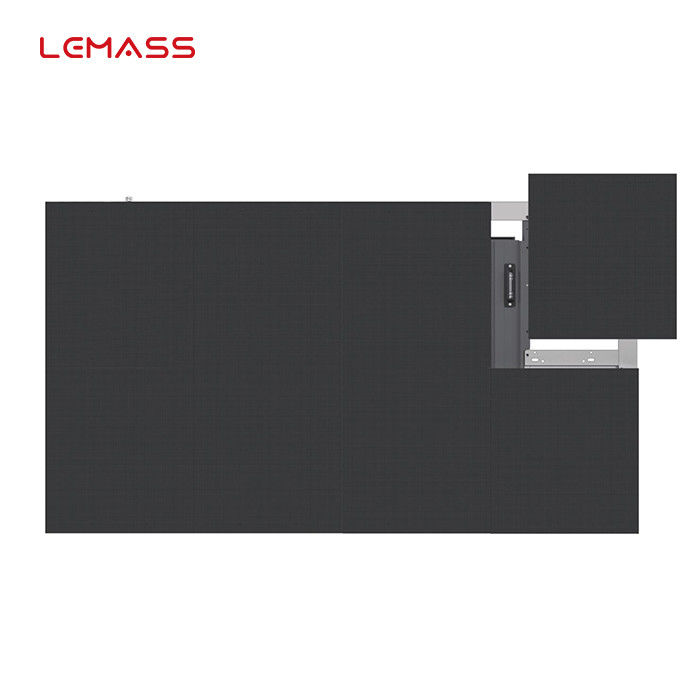

P10 SMD led outdoor display cabinet 16:9 MA Outdoor front and rear maintenance
Description:
Although there are different places to place outdoor LED billboards, the truth is that the most common place is to find them on the roofs of the most central buildings. This is a good opportunity for communities of neighbors and companies that are dedicated to selling advertising spaces, since advertising LED billboards allow you to play video, something that until recently was impossible, and with the highest quality. The great profitability of this type of LED display is due to the incredible visibility that these types of spaces offer, with many advertisers choosing this format to advertise their products or services. In some cases, they are even the same companies that use billboards to advertise. This type of screens, like the vast majority of outdoor LED displays, are prepared so that they can operate 24 hours a day thanks to a system that ensures that the weather conditions do not affect its visibility. This means that the lifespan of the screen will be very long, regardless of the climate changes.
Quick Detail:
· Low power consumption
· Efficient heat dissipation
· AI storage function
· Ultra-high brightness
· Front and rear maintenance
· Color temperature adjustment
Specifications:
| Parameter Item | MA10S |
| Pixel Pitch (mm) | 10 |
| Pixel Density (pixels/sqm) | 10,000 |
| Module Resolution | 32×36 |
| Cabinet Resolution | 128×72 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |
| Cabinet Size (mm) | 1280x720x88.3 |
| Cabinet Weight (kg) | 28±0.05 |
| Brightness (cd/sqm) | 9000/11000 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤630,Ave:≤210 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

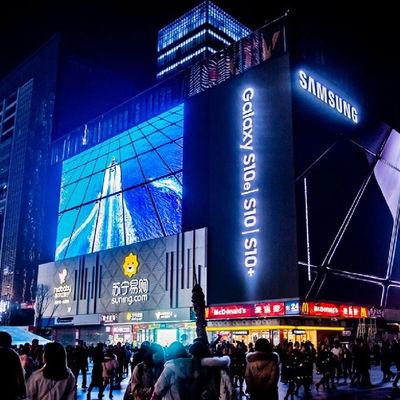

Widely used in outdoor advertising screens, building exterior walls, etc.
