P5.9 Outdoor LED Display Cabinet , SMD 2727 LED Billboard Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P5.9 Outdoor billboard LED screen display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P5.9 Outdoor Billboard LED Screen Display | Size: | 1280x720mm |
|---|---|---|---|
| Pixel Pitch: | H:5.926mm V:6mm | Resolution: | 216×120 |
| Features: | 30% Energy Saving & IP66 Waterproof | Brightness: | 7500~8500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 28±0.05kg |
| High Light: | P5.9 Outdoor LED Display Cabinet,Billboard Outdoor LED Display Cabinet,2727 LED Billboard Screen |
||
Product Description
P5.9 Outdoor billboard LED screen display 16:9 MA Outdoor low power consumption
Description:
MA Outdoor Series, Precise module details provide deep contrast, a key element to sharp images and colors that pop. Custom louver design options provide tailored viewing angles for both stadiums and cityscapes. UV-protected modules maintain a uniform appearance in bright sunlight not only on day one, but for the lifetime of the display. Diverse pixel options, including MT, HD and SMD, provide choices to design the right viewing angle for your location.
Quick Detail:
· Low power consumption
· Efficient heat dissipation
· AI storage function
· Ultra-high brightness
· Front and rear maintenance
· Color temperature adjustment
Specifications:
| Parameter Item | MA5.9S |
| Pixel Pitch (mm) | H:5.926 V:6 |
| Pixel Density (pixels/sqm) | 28,125 |
| Module Resolution | 54×60 |
| Cabinet Resolution | 216×120 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |

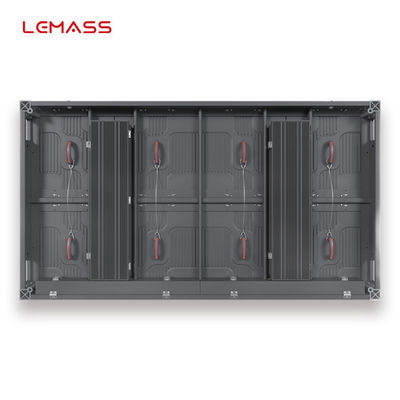

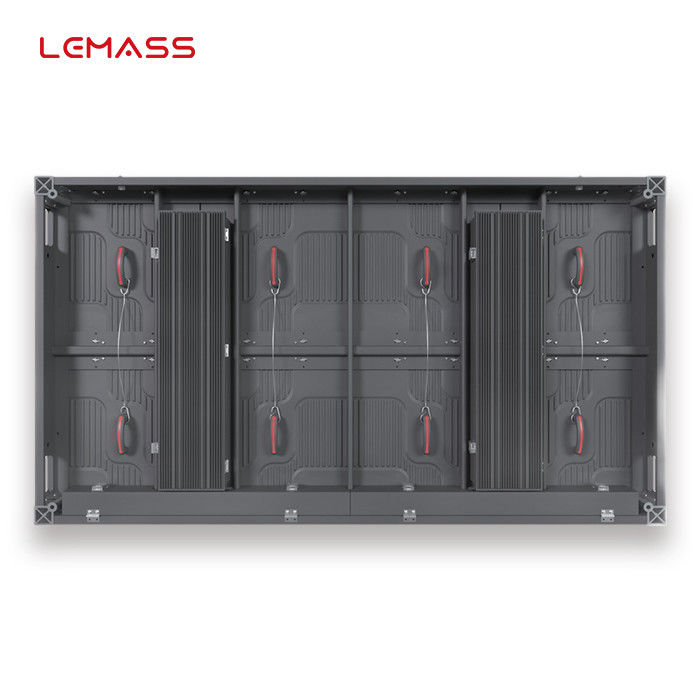

| Cabinet Size (mm) | 1280x720x88.3 |
| Cabinet Weight (kg) | 28±0.05 |
| Brightness (cd/sqm) | 7500/8500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤570,Ave:≤190 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

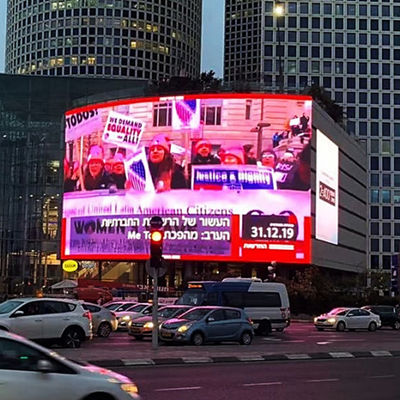

Widely used in outdoor advertising screens, building exterior walls, etc.
