P7.8 SMD 2727 Outdoor Full Color LED Display With 8500cd/Sqm Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P7.8 full color outdoor led screen cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P7.8 Full Color Outdoor Led Screen Cabinet | Size: | 1280x720mm |
|---|---|---|---|
| Pixel Pitch: | H:8mm V:7.826mm | Resolution: | 160×92 |
| Features: | 30% Energy Saving & IP66 Waterproof | Brightness: | 7500~8500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 28±0.05kg |
| High Light: | 2727 Outdoor Full Color LED Display,P7.8 Outdoor Full Color LED Display,8500cd/Sqm full color outdoor led display |
||
Product Description

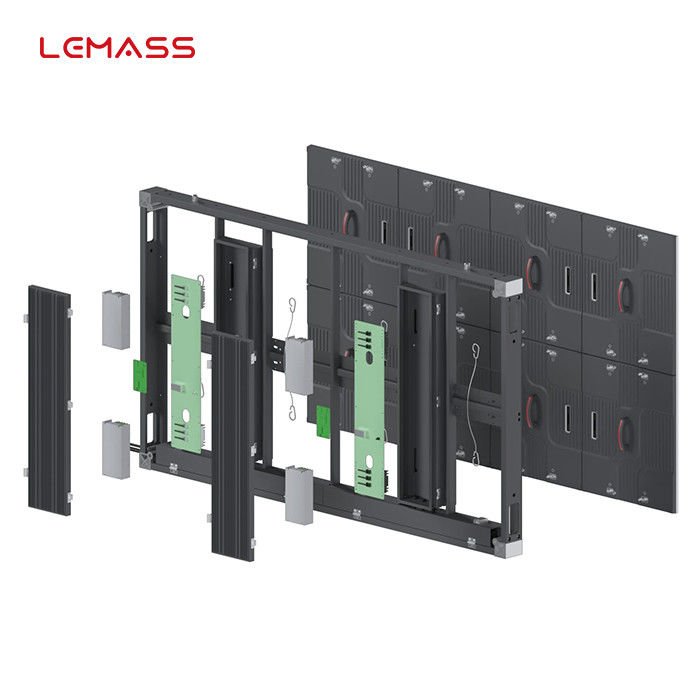

P7.8 full color outdoor led screen cabinet 16:9 MA Outdoor efficient heat dissipation
Description:
While walking across any city in the world you may have noticed all those images displayed along the way. Which ones have caught your eye the most? Moving images, bright signs and, in short, those elements that stand out above the others. This is the reason why you may be wondering what types of outdoor LED screen are available. Are you interested in the world of advertising billboards? Are you thinking about the best way to advertise your business outdoors? Visual Led, a leading company, wants to explain everything about this topic. Do not miss it!
Quick Detail:
· Low power consumption
· Efficient heat dissipation
· AI storage function
· Ultra-high brightness
· Front and rear maintenance
· Color temperature adjustment
Specifications:
| Parameter Item | MA7.8S |
| Pixel Pitch (mm) | H:8 V:7.826 |
| Pixel Density (pixels/sqm) | 15,972 |
| Module Resolution | 40×46 |
| Cabinet Resolution | 160×92 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |
| Cabinet Size (mm) | 1280x720x88.3 |
| Cabinet Weight (kg) | 28±0.05 |
| Brightness (cd/sqm) | 7500/8500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤570,Ave:≤190 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

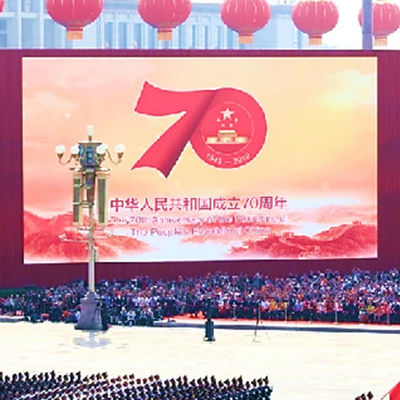

Widely used in outdoor advertising screens, building exterior walls, etc.
